CloudToppedMixedLayerModel

using DynamicalSystems, ConceptualClimateModels
import ConceptualClimateModels.CloudToppedMixedLayerModel as CTMLM

Precompiling DynamicalSystems...
   1742.5 ms  ? DiffEqBase
   1057.8 ms  ? DiffEqBase → DiffEqBaseForwardDiffExt
   1244.5 ms  ? DiffEqBase → DiffEqBaseChainRulesCoreExt
   1268.7 ms  ? DiffEqBase → DiffEqBaseMeasurementsExt
   1372.2 ms  ? DiffEqBase → DiffEqBaseSparseArraysExt
   1738.7 ms  ? DiffEqBase → DiffEqBaseDistributionsExt
   1174.3 ms  ? OrdinaryDiffEqCore
    620.2 ms  ? OrdinaryDiffEqCore → OrdinaryDiffEqCoreEnzymeCoreExt
    626.3 ms  ? OrdinaryDiffEqTsit5
   1442.2 ms  ? DynamicalSystemsBase
   1017.5 ms  ? Attractors
   1104.2 ms  ? ChaosTools
   1107.2 ms  ? PredefinedDynamicalSystems
Info Given DynamicalSystems was explicitly requested, output will be shown live
┌ Warning: Module DynamicalSystemsBase with build ID ffffffff-ffff-ffff-b0c0-365d90580e03 is missing from the cache.
│ This may mean DynamicalSystemsBase [6e36e845-645a-534a-86f2-f5d4aa5a06b4] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
   1016.6 ms  ? DynamicalSystems
┌ Warning: Module DynamicalSystemsBase with build ID ffffffff-ffff-ffff-b0c0-365d90580e03 is missing from the cache.
│ This may mean DynamicalSystemsBase [6e36e845-645a-534a-86f2-f5d4aa5a06b4] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
Precompiling DiffEqBaseMeasurementsExt...
   1610.1 ms  ? DiffEqBase
Info Given DiffEqBaseMeasurementsExt was explicitly requested, output will be shown live
┌ Warning: Module DiffEqBase with build ID ffffffff-ffff-ffff-ace3-f22f7b9e01cc is missing from the cache.
│ This may mean DiffEqBase [2b5f629d-d688-5b77-993f-72d75c75574e] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
    635.9 ms  ? DiffEqBase → DiffEqBaseMeasurementsExt
┌ Warning: Module DiffEqBase with build ID ffffffff-ffff-ffff-ace3-f22f7b9e01cc is missing from the cache.
│ This may mean DiffEqBase [2b5f629d-d688-5b77-993f-72d75c75574e] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
Precompiling PredefinedDynamicalSystems...
   1632.2 ms  ? DiffEqBase
    997.5 ms  ? DiffEqBase → DiffEqBaseForwardDiffExt
    995.0 ms  ? OrdinaryDiffEqCore
   1165.2 ms  ? DiffEqBase → DiffEqBaseSparseArraysExt
    611.6 ms  ? OrdinaryDiffEqCore → OrdinaryDiffEqCoreEnzymeCoreExt
    611.0 ms  ? OrdinaryDiffEqTsit5
   1450.7 ms  ? DynamicalSystemsBase
Info Given PredefinedDynamicalSystems was explicitly requested, output will be shown live
┌ Warning: Module DynamicalSystemsBase with build ID ffffffff-ffff-ffff-b0c0-365d90580e03 is missing from the cache.
│ This may mean DynamicalSystemsBase [6e36e845-645a-534a-86f2-f5d4aa5a06b4] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
    717.9 ms  ? PredefinedDynamicalSystems
┌ Warning: Module DynamicalSystemsBase with build ID ffffffff-ffff-ffff-b0c0-365d90580e03 is missing from the cache.
│ This may mean DynamicalSystemsBase [6e36e845-645a-534a-86f2-f5d4aa5a06b4] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
Precompiling Attractors...
   1718.3 ms  ? DiffEqBase
    989.5 ms  ? DiffEqBase → DiffEqBaseForwardDiffExt
   1159.4 ms  ? DiffEqBase → DiffEqBaseSparseArraysExt
   1432.1 ms  ? OrdinaryDiffEqCore
   1463.4 ms  ? DiffEqBase → DiffEqBaseDistributionsExt
    621.2 ms  ? OrdinaryDiffEqCore → OrdinaryDiffEqCoreEnzymeCoreExt
    617.2 ms  ? OrdinaryDiffEqTsit5
   1443.7 ms  ? DynamicalSystemsBase
Info Given Attractors was explicitly requested, output will be shown live
┌ Warning: Module DynamicalSystemsBase with build ID ffffffff-ffff-ffff-b0c0-365d90580e03 is missing from the cache.
│ This may mean DynamicalSystemsBase [6e36e845-645a-534a-86f2-f5d4aa5a06b4] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
   1023.7 ms  ? Attractors
┌ Warning: Module DynamicalSystemsBase with build ID ffffffff-ffff-ffff-b0c0-365d90580e03 is missing from the cache.
│ This may mean DynamicalSystemsBase [6e36e845-645a-534a-86f2-f5d4aa5a06b4] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
Precompiling AttractorsVisualizations...
   1747.6 ms  ? DiffEqBase
   1086.6 ms  ? DiffEqBase → DiffEqBaseForwardDiffExt
   1258.7 ms  ? DiffEqBase → DiffEqBaseUnitfulExt
   1363.3 ms  ? DiffEqBase → DiffEqBaseChainRulesCoreExt
   1370.7 ms  ? DiffEqBase → DiffEqBaseSparseArraysExt
   1679.2 ms  ? DiffEqBase → DiffEqBaseDistributionsExt
   1140.2 ms  ? OrdinaryDiffEqCore
    648.8 ms  ? OrdinaryDiffEqCore → OrdinaryDiffEqCoreEnzymeCoreExt
    626.3 ms  ? OrdinaryDiffEqTsit5
   1510.6 ms  ? DynamicalSystemsBase
   1119.5 ms  ? Attractors
Info Given AttractorsVisualizations was explicitly requested, output will be shown live
┌ Warning: Module Attractors with build ID ffffffff-ffff-ffff-96fe-817a70c5411e is missing from the cache.
│ This may mean Attractors [f3fd9213-ca85-4dba-9dfd-7fc91308fec7] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
    698.3 ms  ? Attractors → AttractorsVisualizations
┌ Warning: Module Attractors with build ID ffffffff-ffff-ffff-96fe-817a70c5411e is missing from the cache.
│ This may mean Attractors [f3fd9213-ca85-4dba-9dfd-7fc91308fec7] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
Precompiling ChaosTools...
   1645.0 ms  ? DiffEqBase
   1162.1 ms  ? DiffEqBase → DiffEqBaseMeasurementsExt
   1226.7 ms  ? DiffEqBase → DiffEqBaseForwardDiffExt
   1430.7 ms  ? DiffEqBase → DiffEqBaseSparseArraysExt
   1654.7 ms  ? OrdinaryDiffEqCore
   1665.7 ms  ? DiffEqBase → DiffEqBaseDistributionsExt
    625.0 ms  ? OrdinaryDiffEqCore → OrdinaryDiffEqCoreEnzymeCoreExt
    617.3 ms  ? OrdinaryDiffEqTsit5
   1467.4 ms  ? DynamicalSystemsBase
Info Given ChaosTools was explicitly requested, output will be shown live
┌ Warning: Module DynamicalSystemsBase with build ID ffffffff-ffff-ffff-b0c0-365d90580e03 is missing from the cache.
│ This may mean DynamicalSystemsBase [6e36e845-645a-534a-86f2-f5d4aa5a06b4] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
    711.4 ms  ? ChaosTools
┌ Warning: Module DynamicalSystemsBase with build ID ffffffff-ffff-ffff-b0c0-365d90580e03 is missing from the cache.
│ This may mean DynamicalSystemsBase [6e36e845-645a-534a-86f2-f5d4aa5a06b4] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
Precompiling DynamicalSystemsVisualizations...
   1664.0 ms  ? DiffEqBase
   1197.8 ms  ? DiffEqBase → DiffEqBaseForwardDiffExt
   1239.5 ms  ? DiffEqBase → DiffEqBaseChainRulesCoreExt
   1264.1 ms  ? DiffEqBase → DiffEqBaseMeasurementsExt
   1425.1 ms  ? DiffEqBase → DiffEqBaseSparseArraysExt
   1726.0 ms  ? DiffEqBase → DiffEqBaseDistributionsExt
    867.2 ms  ? DiffEqBase → DiffEqBaseUnitfulExt
   1264.2 ms  ? OrdinaryDiffEqCore
    613.8 ms  ? OrdinaryDiffEqCore → OrdinaryDiffEqCoreEnzymeCoreExt
    622.7 ms  ? OrdinaryDiffEqTsit5
   1448.4 ms  ? DynamicalSystemsBase
   1018.1 ms  ? Attractors
   1137.0 ms  ? PredefinedDynamicalSystems
   1138.9 ms  ? ChaosTools
    626.7 ms  ? Attractors → AttractorsVisualizations
   1015.1 ms  ? DynamicalSystems
Info Given DynamicalSystemsVisualizations was explicitly requested, output will be shown live
┌ Warning: Module DynamicalSystems with build ID ffffffff-ffff-ffff-2630-e4db2c0c92ad is missing from the cache.
│ This may mean DynamicalSystems [61744808-ddfa-5f27-97ff-6e42cc95d634] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541
    632.1 ms  ? DynamicalSystems → DynamicalSystemsVisualizations
┌ Warning: Module DynamicalSystems with build ID ffffffff-ffff-ffff-2630-e4db2c0c92ad is missing from the cache.
│ This may mean DynamicalSystems [61744808-ddfa-5f27-97ff-6e42cc95d634] does not support precompilation but is imported by a module that does.
└ @ Base loading.jl:2541

Fixed states of Stevens 2006

Here we want to recreate the same bulk boundary layer model defined in (Stevens, 2006), equations 31-33.

const cₚ = 1004.0 # heat capacity at constant pressure (J/K/kg)

eqs = [
    CTMLM.mlm_dynamic(),
    CTMLM.entrainment_velocity(:Stevens2006; use_augmentation = false),
    ## Figure 1 and Sec. 4.2 provide these values:
    CTMLM.s₊ ~ 301200.0/cₚ,
    CTMLM.q₊ ~ 1.56,
    CTMLM.s₀ ~ CTMLM.s₊ - 12.5,
    CTMLM.ρ₀ ~ 1,
    CTMLM.q₀ ~ CTMLM.q_saturation(288.96 + 1.25),
    CTMLM.ΔF_s ~ 40.0
]

8-element Vector{Any}:
 TimeDerivative[TimeDerivative(z_b(t), -w_m(t) + w_e(t) - D*z_b(t), LiteralParameter{Float64}(1.1574074074074073e-5)), TimeDerivative(s_b(t), -1.1574074074074073e-5s_x(t) + ((0.00099601593625498(SHF(t) - ΔF_s(t))) / ρ₀(t) + Δ₊s(t)*w_e(t)) / z_b(t), LiteralParameter{Float64}(1.1574074074074073e-5)), TimeDerivative(q_b(t), -1.1574074074074073e-5q_x(t) + ((-ΔF_q(t) + LHF(t)) / (2530.0ρ₀(t)) + Δ₊q(t)*w_e(t)) / z_b(t), LiteralParameter{Float64}(1.1574074074074073e-5))]
 w_e(t) ~ (e_e*ΔF_s(t)) / (1004.0Δ₊s(t)*ρ₀(t))
 s₊(t) ~ 300.0
 q₊(t) ~ 1.56
 s₀(t) ~ -12.5 + s₊(t)
 ρ₀(t) ~ 1
 q₀(t) ~ 12.404970818808321
 ΔF_s(t) ~ 40.0

We now give these equations to the main function that creates a DynamicalSystem from the processes (and we also provide CTMLM to obtain default processes from)

ds = processes_to_coupledodes(eqs, CTMLM)

3-dimensional CoupledODEs
 deterministic: true
 discrete time: false
 in-place:      false
 dynamic rule:  GeneratedFunctionWrapper
 ODE solver:    Tsit5
 ODE kwargs:    (abstol = 1.0e-6, reltol = 1.0e-6)
 parameters:    [0.9, 3.0e-6, 0.0012, 6.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0  …  0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0]
 time:          0.0
 state:         [11.0, 290.0, 1200.0]

We also make sure to use the same parameter values as in the paper:

set_parameter!(ds, :D, 4e-6)
set_parameter!(ds, :d_c, 0.0011)
set_parameter!(ds, :U, 0.008/0.0011) # U*d_c = 0.008
set_parameter!(ds, :e_e, 1.0) # effective emissivity

And that's all. We can run the system to its steady state:

step!(ds, 100.0)

3-dimensional CoupledODEs
 deterministic: true
 discrete time: false
 in-place:      false
 dynamic rule:  GeneratedFunctionWrapper
 ODE solver:    Tsit5
 ODE kwargs:    (abstol = 1.0e-6, reltol = 1.0e-6)
 parameters:    [1.0, 4.0e-6, 0.0011, 7.2727272727272725, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0  …  0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0]
 time:          100.10196159861358
 state:         [9.315240208837562, 287.4999999999997, 796.8127490039915]

leading to a steady state with height $z_b$ ($h_\infty$ in (Stevens, 2006)) of about 800 meters as in the paper. Extracting the variable $\sigma$ of Eq. 38 is also very easy:

Δs = CTMLM.s₊ - CTMLM.s₀ # symbolic variable not existing in the graph of the `ds`
σ = observe_state(ds, CTMLM.V * Δs / CTMLM.ΔF_s * cₚ)

2.5100000000000002

and we get the same value (note multiplication by cₚ, because s is in units of K).

If you want to see a list of all equations that compose the dynamical system then do

all_equations(ds)

\[ \begin{align} \frac{\mathrm{d} \mathtt{q\_b}\left( t \right)}{\mathrm{d}t} &= - 86400 \left( 1.1574 \cdot 10^{-5} \mathtt{q\_x}\left( t \right) + \frac{\frac{\mathtt{{\Delta}F\_q}\left( t \right) - \mathtt{LHF}\left( t \right)}{2530 \mathtt{\rho_0}\left( t \right)} - \mathtt{\Delta.q}\left( t \right) \mathtt{w\_e}\left( t \right)}{\mathtt{z\_b}\left( t \right)} \right) \\ \frac{\mathrm{d} \mathtt{s\_b}\left( t \right)}{\mathrm{d}t} &= - 86400 \left( \frac{\frac{ - 0.00099602 \left( \mathtt{SHF}\left( t \right) - \mathtt{{\Delta}F\_s}\left( t \right) \right)}{\mathtt{\rho_0}\left( t \right)} - \mathtt{\Delta.s}\left( t \right) \mathtt{w\_e}\left( t \right)}{\mathtt{z\_b}\left( t \right)} + 1.1574 \cdot 10^{-5} \mathtt{s\_x}\left( t \right) \right) \\ \frac{\mathrm{d} \mathtt{z\_b}\left( t \right)}{\mathrm{d}t} &= - 86400 \left( \mathtt{w\_m}\left( t \right) - \mathtt{w\_e}\left( t \right) + D \mathtt{z\_b}\left( t \right) \right) \\ \mathtt{\rho_0}\left( t \right) &= 1 \\ \mathtt{s.}\left( t \right) &= 300 \\ \mathtt{{\Delta}F\_s}\left( t \right) &= 40 \\ \mathtt{q_0}\left( t \right) &= 12.405 \\ V\left( t \right) &= U \mathtt{d\_c} \\ \mathtt{q\_x}\left( t \right) &= 0 \\ \mathtt{s\_x}\left( t \right) &= 0 \\ \mathtt{w\_m}\left( t \right) &= 0 \\ \mathtt{{\Delta}F\_q}\left( t \right) &= 0 \\ \mathtt{q.}\left( t \right) &= 1.56 \\ \mathtt{\Delta.s}\left( t \right) &= - \mathtt{s\_b}\left( t \right) + \mathtt{s.}\left( t \right) \\ \mathtt{s_0}\left( t \right) &= -12.5 + \mathtt{s.}\left( t \right) \\ \mathtt{\Delta_{0}q}\left( t \right) &= \mathtt{q\_b}\left( t \right) - \mathtt{q_0}\left( t \right) \\ \mathtt{\Delta.q}\left( t \right) &= - \mathtt{q\_b}\left( t \right) + \mathtt{q.}\left( t \right) \\ \mathtt{w\_e}\left( t \right) &= \frac{\mathtt{e\_e} \mathtt{{\Delta}F\_s}\left( t \right)}{1004 \mathtt{\Delta.s}\left( t \right) \mathtt{\rho_0}\left( t \right)} \\ \mathtt{\Delta_{0}s}\left( t \right) &= \mathtt{s\_b}\left( t \right) - \mathtt{s_0}\left( t \right) \\ \mathtt{LHF}\left( t \right) &= - 2530 \mathtt{\Delta_{0}q}\left( t \right) V\left( t \right) \mathtt{\rho_0}\left( t \right) \\ \mathtt{SHF}\left( t \right) &= - 1004 V\left( t \right) \mathtt{\rho_0}\left( t \right) \mathtt{\Delta_{0}s}\left( t \right) \end{align} \]

In the compiled documentation these render via LaTeX but running this in the REPL won't be as pretty :)

Adding clouds

We can add clouds to the mixed layer model using the same decoupling-based approach as in (Datseris, 2025) (while keeping SST a fixed boundary condition) just by including a couple more equations to the ones already defined, so that $C, \mathcal{D}$ have a process assigned to them. We will also augment ΔF to be partially proportional to C using a very simple ad-hoc approach.

eqs = [
    CTMLM.mlm_dynamic(),
    CTMLM.entrainment_velocity(:Stevens2006; use_augmentation = false),
    ## Cloud stuff
    CTMLM.cf_dynamic(),
    CTMLM.decoupling_variable(),
    CTMLM.cloud_base_height(:Bolton1980),
    CTMLM.CTRC ~ 10 + 40*CTMLM.C, # cloud top radiative cooling
    CTMLM.ΔF_s ~ CTMLM.CTRC, # same equation
    ## rest the same
    CTMLM.s₊ ~ 301200.0/cₚ,
    CTMLM.q₊ ~ 1.56,
    CTMLM.s₀ ~ CTMLM.s₊ - 12.5,
    CTMLM.ρ₀ ~ 1,
    CTMLM.q₀ ~ CTMLM.q_saturation(288.96 + 1.25),
]

ds = processes_to_coupledodes(eqs, CTMLM)

4-dimensional CoupledODEs
 deterministic: true
 discrete time: false
 in-place:      false
 dynamic rule:  GeneratedFunctionWrapper
 ODE solver:    Tsit5
 ODE kwargs:    (abstol = 1.0e-6, reltol = 1.0e-6)
 parameters:    [0.9, 3.0e-6, 1.0, 0.2, 1.0, 0.5, 100.0, 2.0, 0.0012, 6.0  …  0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0]
 time:          0.0
 state:         [11.0, 290.0, 1200.0, 1.0]

And we run the model to a steady state:

set_parameter!(ds, :D, 4e-6)
set_parameter!(ds, :d_c, 0.0009)
set_parameter!(ds, :U, 6.8) # U*d_c = 0.008
set_parameter!(ds, :e_e, 1.0) # effective emissivity

step!(ds, 100.0)
observe_state.(ds, (:z_b, :q_b, :s_b, :C)) # get state variables by name

(763.5014057710669, 8.794700233030296, 287.50000000000017, 0.7081938746297317)

Climate change scenario: increasing SST

If you want to study multistability for alternate cloud states (Cumulus vs Stratocumulus), or perform continuations (like the climate change scenarios in (Datseris, 2025)), visit the documentation of Attractors.jl.

As a brief example we will perform a simple climate change scenario where SST increases with a constant rate. First, we modify the equations so that s₀, q₀ are derived from a prescribed SST:

@parameters SST = 290.0
eqs = [
    CTMLM.mlm_dynamic(),
    CTMLM.entrainment_velocity(:Stevens2006; use_augmentation = false),
    ## Cloud stuff
    CTMLM.cf_dynamic(),
    CTMLM.decoupling_variable(),
    CTMLM.cloud_base_height(:Bolton1980),
    CTMLM.CTRC ~ 10 + 40*CTMLM.C, # cloud top radiative cooling
    CTMLM.ΔF_s ~ CTMLM.CTRC, # same equation
    ## Usage of SST
    CTMLM.s₀ ~ SST,
    CTMLM.q₀ ~ CTMLM.q_saturation(SST),
    ## rest the same
    CTMLM.s₊ ~ 301200.0/cₚ,
    CTMLM.q₊ ~ 1.56,
    CTMLM.ρ₀ ~ 1,
]

ds = processes_to_coupledodes(eqs, CTMLM)
set_parameter!(ds, :D, 4e-6)
set_parameter!(ds, :d_c, 0.0009)
set_parameter!(ds, :U, 6.8) # U*d_c = 0.008
set_parameter!(ds, :e_e, 1.0) # effective emissivity
ds

4-dimensional CoupledODEs
 deterministic: true
 discrete time: false
 in-place:      false
 dynamic rule:  GeneratedFunctionWrapper
 ODE solver:    Tsit5
 ODE kwargs:    (abstol = 1.0e-6, reltol = 1.0e-6)
 parameters:    [1.0, 290.0, 4.0e-6, 1.0, 0.2, 1.0, 0.5, 100.0, 2.0, 0.0009  …  0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0]
 time:          0.0
 state:         [11.0, 290.0, 1200.0, 1.0]

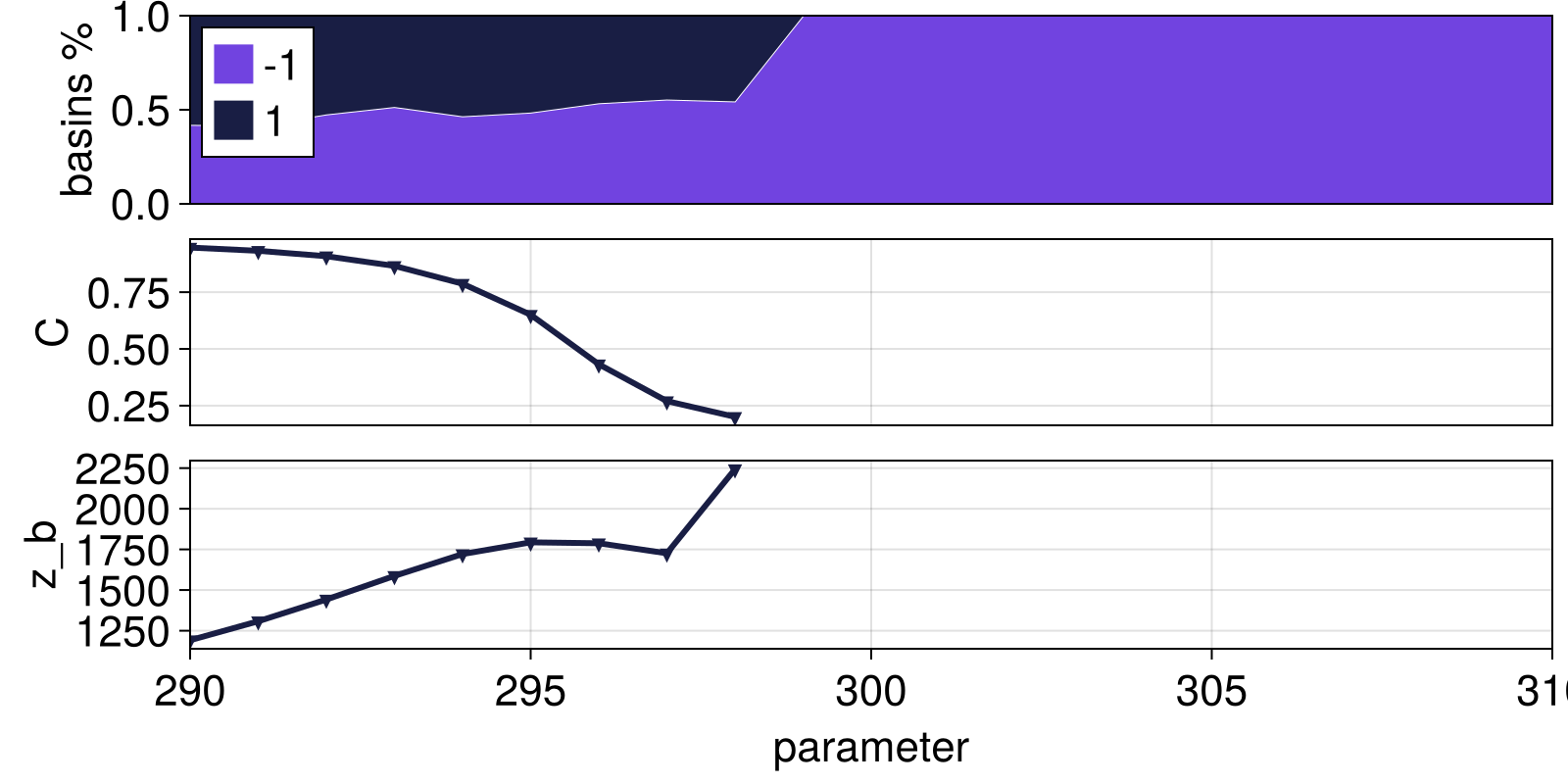

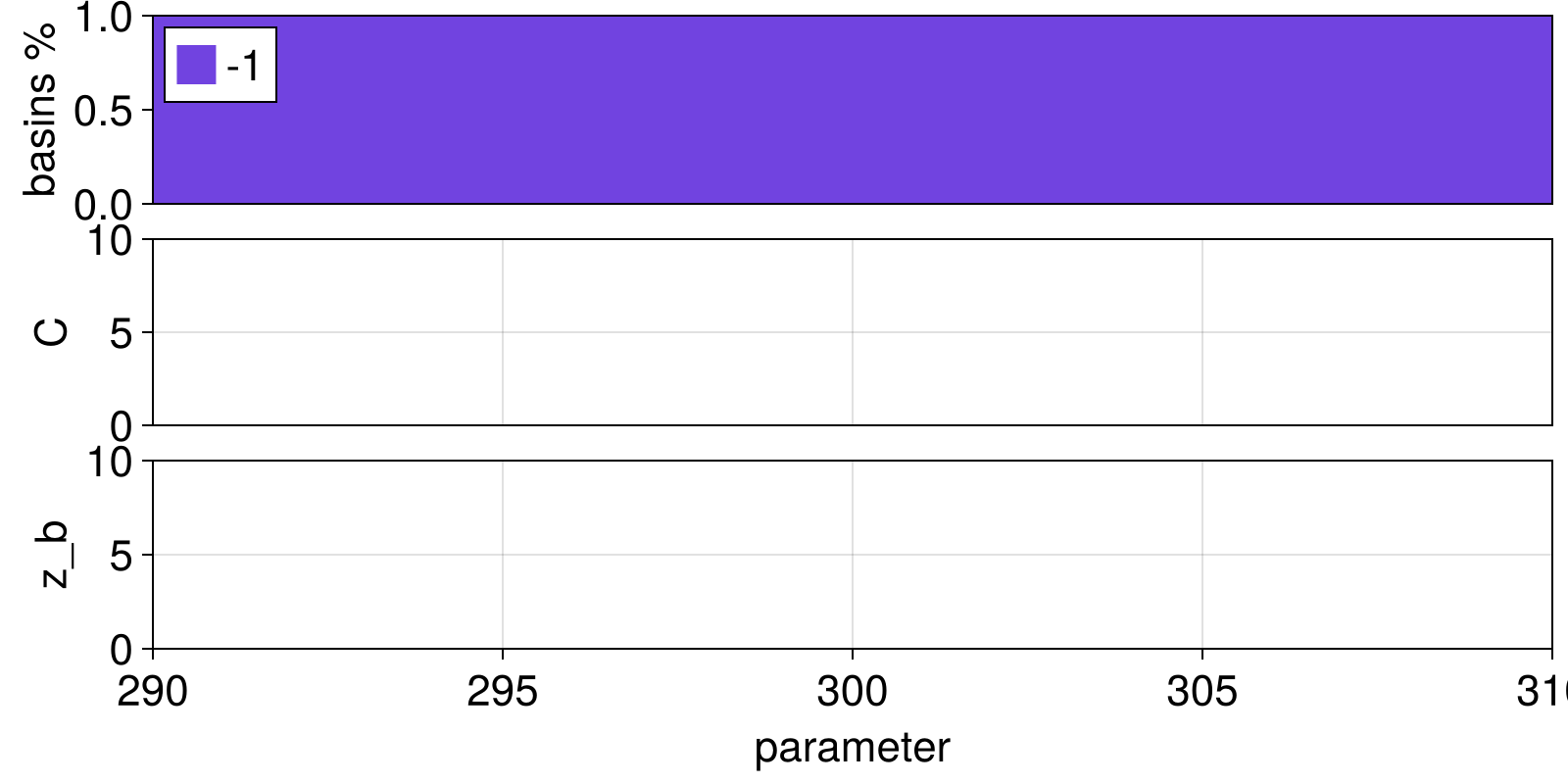

To perform global continuation we need to create an attractor mapper, which we create here by tessellating the state space. Have a look at the Attractors.jl tutorial if the next few lines of code are puzzling to you

grid = (
    (1:1.0:25), # specific humidity
    (270:5.0:330), # static energy
    (0:100.0:3000), # height
    (0:0.1:1), # cloud fraction
)

sampler, = statespace_sampler(grid)

mapper = AttractorsViaRecurrences(ds, grid)
ascm = AttractorSeedContinueMatch(mapper)

fs = basins_fractions(mapper, sampler; show_progress = false)
attractors = extract_attractors(mapper)

Dict{Int64, StateSpaceSet{4, Float64, SVector{4, Float64}}} with 1 entry:
  1 => 4-dimensional StateSpaceSet{Float64} with 1 points

with the sampler, mapper, ascm data structures in order, we can easily now run a global continuation with changing SST:

prange = 290:1:310
pidx = :SST
fractions_cont, attractors_cont = global_continuation(ascm, prange, pidx, sampler; show_progress = false)
attractors_cont

21-element Vector{Dict{Int64, StateSpaceSet{4, Float64, SVector{4, Float64}}}}:
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 1 points)
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 1 points)
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 1 points)
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 1 points)
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 1 points)
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 1 points)
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 4 points)
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 1 points)
 Dict(1 => 4-dimensional StateSpaceSet{Float64} with 1 points)
 Dict()
 ⋮
 Dict()
 Dict()
 Dict()
 Dict()
 Dict()
 Dict()
 Dict()
 Dict()
 Dict()

if you are not sure what the output means, no worries, just have a look at the Attractors.jl documentation. Here we visualize the cloud fraction:

using CairoMakie

# cloud fraction and height values of last point on the attractor
varvalues = [A -> A[end][4], A -> A[end][3]]

fig = plot_basins_attractors_curves(
	fractions_cont, attractors_cont, varvalues, prange,
)
content(fig[2,1]).ylabel = "C"
content(fig[3,1]).ylabel = "z_b"
fig

we see for our ad hoc parameterizations, the dynamical system has no stable states for SST > 297. Before that cloud fraction decreases very fast from a Stratocumulus state to a Cumulus one.

The model diverges due to the definition of the entrainment velocity (which is proportional to ΔF_s/Δ₊s) in combination with a fixed s₊: the model reaches a state where Δ₊s is so small that height increases unnaturally well beyond the state space tessellation we defined.
