Injector Nodes
In large network models, vertices often contain multiple internal components (e.g., generators, loads, storage devices). While these can be modeled as a single monolithic vertex model, splitting them into separate "injector nodes" connected via special loopback edges can offer performance and modularity advantages. This page explains the injector node pattern and demonstrates how to use LoopbackConnection edges.
Concept
Let's consider the following subset of a Network:
⋮
┏┷━━┓ input
⋯─┨vₖ ┠───╮ aggr. ┏━━━━━━━━┓
┗━━━┛ ╰─────╮ ┃ ┃
┏━━━┓ (+)──┨ Vertex ┃
⋯──┨vⱼ ┠────────╯ ┃ ┃
┗━┯━┛ ┗━━━━━━━━┛
⋮we have a vertex of interest which is connected to two other vertices in the network via edges. Generally, we follow the interface of having potential like outputs at the nodes and flow like outputs at the edges. I.e. the potential on the nodes depends on the sum of flows through the edges while the flows through the edges depend on the potential on the adjacent nodes.
The input-output structure of this system looks something like this:
more edges
△
n ⋯───╮ ╭────────────────┼────────────────╮ ╭───⋯ n
e │ │ potential │ φ out │ │ e
x ┏━━▽━━━━━━━━━━━━━▽━━┓ ╔═════════△═════════╗ ┏━━▽━━━━━━━━━━━━━▽━━┓ x
t ┃ EdgeModel ┃ ║ VertexModel ║ ┃ EdgeModel ┃ t
┃ ẋ = f(x, φ, p, t) ┃ ║ ẋ = f(x, Φ, p, t) ║ ┃ ẋ = f(x, φ, p, t) ┃
n ┃ Φ = g(x, φ, p, t) ┃ ║ φ = g(x, p, t) ║ ┃ Φ = g(x, φ, p, t) ┃ n
o ┗━━▽━━━━━━━━━━━━━▽━━┛ ╚═════════△═════════╝ ┗━━▽━━━━━━━━━━━━━▽━━┛ o
d │ flow │ Φ out ╭─┴─╮ flow │ Φ out │ d
e ⋯───╯ ╰──────────────▷ + ◁──────────────╯ ╰───⋯ e
╰─△─╯
│
more edgeswhere, notably, only the edge models support feed forward behavior.
In typical NetworkDynamics modeling, the entire nodal dynamic is contained within a single VertexModel. However, vertices often have modular internal structure consisting of multiple components that inject or draw flows. For example, an electrical bus might have generators, loads, and storage devices all connected to it.
⋮ ┏━━━━━━━━━━━━━━━━━━┓
┏┷━━┓ input ┃Vertex ┃
⋯─┨vₖ ┠───╮ aggr. ┃ ╭──────────╮ ┃
┗━━━┛ ╰─────╮ ┃ ╭──┤Injector A│ ┃
┏━━━┓ (+)──╂─(+) ╰──────────╯ ┃
⋯──┨vⱼ ┠────────╯ ┃ │ ╭──────────╮ ┃
┗━┯━┛ ┃ ╰──┤Injector B│ ┃
⋮ ┃ ╰──────────╯ ┃
┗━━━━━━━━━━━━━━━━━━┛While not strictly necessary, splitting these vertex models into "clusters" can improve performance and code organization. A cluster consists of a hub vertex and several injector vertices that connect to it. This approach can be particularly beneficial because:
- NetworkDynamics performs best when there are many identical components. Splitting components into smaller parts makes it more likely to have repeated, identical components.
- The model structure matches the physical modularity of the system.
- For ModelingToolkit models, large monolithic components can lead to higher compilation and symbolic simplification times compared to multiple smaller models.
Notably, injector models have a flipped input-output scheme compared to normal vertices: they take the hub's potential as a direct input and output a flow.
Hub Loopback Satelites
╭──────╮╭────────╮╭──────────╮
⋮
┏┷━━┓ ┏━━━━━━━━━━┓
⋯─┨vₖ ┠───╮ ┏━━━━━━┓ ╭─────┨Injector A┃
┗━━━┛ ╰───┨ ┠────╯ ┗━━━━━━━━━━┛
┏━━━┓ ┃ Σi=0 ┃
⋯──┨vⱼ ┠──────┨ ┠────╮ ┏━━━━━━━━━━┓
┗━┯━┛ ┗━━━━━━┛ ╰─────┨Injector B┃
⋮ ┗━━━━━━━━━━┛
╰────────────────────────────╯
Vertex ClusterTo connect this kind of injector nodes, we use the special EdgeModel LoopbackConnection. See the docstring below for a detailed explaination of the interfaces.
NetworkDynamics.LoopbackConnection — Function
LoopbackConnection(; potential, flow, kwargs...)A LoopbackConnection is a special EdgeModel that enables direct connection of "injector nodes" to a "hub" node without requiring aggregation logic. An injector node is an "inverted" VertexModel, which gets the networks potential as an input and outputs a flow variable.
The LoopbackConnection allows a direct, star-like connection of injector nodes to a single hub nodes. The LoopbackConnection is a directed edge model from injector to hub!
┊
┄┄┄◯ ● injector 1
╱ ╲ ╱
┄┄◯╶─╴◯╶─╴● injector 2
┊ ╲
● injector 3Injector nodes:
- have a flipped interface (potential in, flow out)
- must be leaf nodes (one neighbor only),
- must be connected through a LoopbackConnection EdgeModel and
- may have feed-forward (direct dependency of flow-output on potential-input).
For normal vertices, positive flow as an input means flow into the vertex. This convention is maintained for injector nodes (though it may seem counter-intuitive):
- Positive flow: Draw from the hub (consumption)
- Negative flow: Injection into the hub (production)
When using ModelingToolkit models, you only need to flip the input/output variable declarations—the equations themselves remain unchanged. For example, a resistor with p.i ~ p.v/R keeps the same equation; only the interface changes from VertexModel(..., [:p₊i], [:p₊v]) to VertexModel(..., [:p₊v], [:p₊i]).
△
╭────────────────┼────────────╮
│ potential │ φ out │
━━━━━━▽━━┓ ╔═════════△═════════╗ │ ┏━━━━━━━┓ ╔═══════════════════╗
normal ┃ ║ VertexModel (hub) ║ ╰──▷┄┄┄┄┄┄┄▷───▷ Injector Vertex ║
EdgeModel┃ ║ ẋ = f(x, Φ, p, t) ║ ┃ ┃ ║ ẋ = f(x, φ, p, t) ║
┃ ║ φ = g(x, p, t) ║ ╭──◁┄×(-1)┄◁───◁ Φ = g(x, φ, p, t) ║
━━━━━━▽━━┛ ╚═════════△═════════╝ │ ┗━━━━━━━┛ ╚═══════════════════╝
flow │ Φ out ╭─┴─╮ │ special ⋅ flipped interface:
╰──────────────▷ + ◁──────────╯ "Loopback" ▷ potential φ in
(aggregation) ╰─△─╯ EdgeModel ◁ flow Φ out
│ inj => hub ⋅ feed forward allowedFor input-output naming you need to provide the potential and flow symbols.
julia> LoopbackConnection(; potential=[:u_r, :u_i], flow=[:i_r, :i_i], src=1, dst=2)
EdgeModel :loopback PureFeedForward() @ Edge 1=>2
├─ 2/2 inputs: src=[injector₊i_r, injector₊i_i] dst=[hub₊u_r, hub₊u_i]
├─ 0 states: []
└─ 2/2 outputs: src=[injector₊u_r, injector₊u_i] dst=[hub₊i_r, hub₊i_i]Example
Following the other examples we'll showcase the feature on the a small electrical network. The network to model looks like this:
v1 Resistor v2
●─←────███────→─●
│ ╭──┼──╮
ideal v source (↗) ┴ █ ⚕
│ ┬ █ ⚕ C + R + L
│ ╰──┼──╯
⏚ ⏚For demonstration purposes we'll model second vertex in two ways: as a single model enclosing all three components and as separate injector nodes.
As always, this is mainly a pedagogical example. For such a simple system, it is probably much cleaner to model it as a single vertex. However thats not always the case for very large networks with many complex vertex models!
Prerequisites
The first few components building blocks are identical to the docs on ModelingToolkit Integration.
using NetworkDynamics
using ModelingToolkit
using ModelingToolkit: t_nounits as t, D_nounits as D
using OrdinaryDiffEqTsit5
using CairoMakie
@mtkmodel NWTerminal begin
@variables begin
v(t), [description="Voltage at node"]
i(t), [description="Current flowing into node"]
end
end
@mtkmodel VoltageSource begin
@components begin
p = NWTerminal()
end
@parameters begin
V = 1.0
end
@variables begin
i(t), [description="produced current by ideal voltage source (observable)"]
end
@equations begin
i ~ -p.i
p.v ~ V
end
end
@named vs = VoltageSource()
vs_vertex = VertexModel(vs, [:p₊i], [:p₊v])
@mtkmodel Resistor begin
@components begin
src = NWTerminal()
dst = NWTerminal()
end
@parameters begin
R = 1
end
@equations begin
dst.i ~ (src.v - dst.v)/R
src.i ~ -dst.i
end
end
@named resistor = Resistor()Part A: Modeling with Injector Nodes and LoopbackConnection
We'll model the circuit using separate components connected via loopback edges. Since our capacitor has the equation
\[\dot{u} = \frac{1}{C} i\]
it is a natural voltage source. We'll use it as the "hub" node which will be accompanied by two injector nodes for the resistor and inductor.
@mtkmodel Capacitor begin
@components begin
p = NWTerminal(;v=0)
end
@parameters begin
C = 1.0
end
@equations begin
D(p.v) ~ p.i / C
end
end
@named cap = Capacitor()
hub_vertex = VertexModel(cap, [:p₊i], [:p₊v], name=:hub)VertexModel :hub PureStateMap()
├─ 1 input: [p₊i]
├─ 1 state: [p₊v=0]
├─ 1 output: [p₊v=0]
└─ 1 param: [C=1]Next, we define the resistor as an injector node. Unlike the regular Resistor edge model, this takes voltage as input and outputs current:
@mtkmodel ResistorInjector begin
@components begin
p = NWTerminal()
end
@parameters begin
R = 100.0
end
@equations begin
p.i ~ p.v/R
end
end
@named resistor_inj = ResistorInjector()
Rinj_vertex = VertexModel(resistor_inj, [:p₊v], [:p₊i], name=:R_injector)VertexModel :R_injector PureStateMap()
├─ 1 input: [p₊v]
├─ 1 state: [p₊i]
| with diagonal mass matrix [0]
├─ 1 output: [p₊i]
└─ 1 param: [R=100]Notice how we've flipped the interface: voltage becomes an input ([:p₊v]) and current becomes an output ([:p₊i]). However, the model above has a constraint instead of feed-forward behavior. By default, the VertexModel constructor transforms feed-forward relationships into constraint states—a sensible default since most vertex models should not have feed-forward behavior. For injector nodes, we need to opt out of this transformation:
Rinj_vertex = VertexModel(resistor_inj, [:p₊v], [:p₊i], name=:R_injector, ff_to_constraint=false)VertexModel :R_injector PureFeedForward()
├─ 1 input: [p₊v]
├─ 0 states: []
├─ 1 output: [p₊i]
└─ 1 param: [R=100]Next, we go for the Inductor injector node:
@mtkmodel InductorInjector begin
@components begin
p = NWTerminal()
end
@parameters begin
L = 0.1
end
@equations begin
D(p.i) ~ p.v / L
end
end
@named inductor_inj = InductorInjector()
Linj_vertex = VertexModel(inductor_inj, [:p₊v], [:p₊i], name=:L_injector, ff_to_constraint=false)VertexModel :L_injector PureStateMap()
├─ 1 input: [p₊v]
├─ 1 state: [p₊i]
├─ 1 output: [p₊i]
└─ 1 param: [L=0.1]Now, we need to define the connections between the hub and the injectors, and between voltage source and hub. For the two injectors we define the special LoopbackConnection endges from injector to hub. For the connection between voltage source and hub we use a regular edge model.
edges = [
LoopbackConnection(potential=[:u], flow=[:i], src=:R_injector, dst=:hub, name=:R_loopback),
LoopbackConnection(potential=[:u], flow=[:i], src=:L_injector, dst=:hub, name=:L_loopback),
EdgeModel(resistor, [:src₊v], [:dst₊v], [:src₊i], [:dst₊i]; src=:vs, dst=:hub)
]
vertices = [vs_vertex, hub_vertex, Rinj_vertex, Linj_vertex]
nw = Network(vertices, edges; warn_order=false)Network with 2 states and 5 parameters
├─ 4 vertices (4 unique types)
└─ 3 edges (2 unique types)
Edge-Aggregation using SequentialAggregator(+)To simulate the system we use the default initial conditions. We can inspect the states of our network to see how the different variables span the components:
s0 = NWState(nw)
s0.vFilteringProxy for NWState()
Component filter: AllVertices() <- filter further by obj[1], obj["name"], ...
State filter: none
Types: states ✓ parameters ✓ inputs ✓ outputs ✓ observables ✓
Matching Indices:
╭ VIndex(1, :V) 1 :vs
│ VIndex(1, :p₊v) 1
│ VIndex(1, :p₊i) -1
╰ VIndex(1, :i) 1
╭ VIndex(2, :p₊v) 0 :hub
│ VIndex(2, :C) 1
╰ VIndex(2, :p₊i) NaN (undefined?)
╭ VIndex(3, :R) 100 :R_injector
│ VIndex(3, :p₊i) 0
╰ VIndex(3, :p₊v) 0
╭ VIndex(4, :p₊i) NaN (undefined?) :L_injector
│ VIndex(4, :L) 0.1
╰ VIndex(4, :p₊v) 0 With that knowlege, we can set the initial condition:
s0.v[:hub, :p₊v] = 0.0

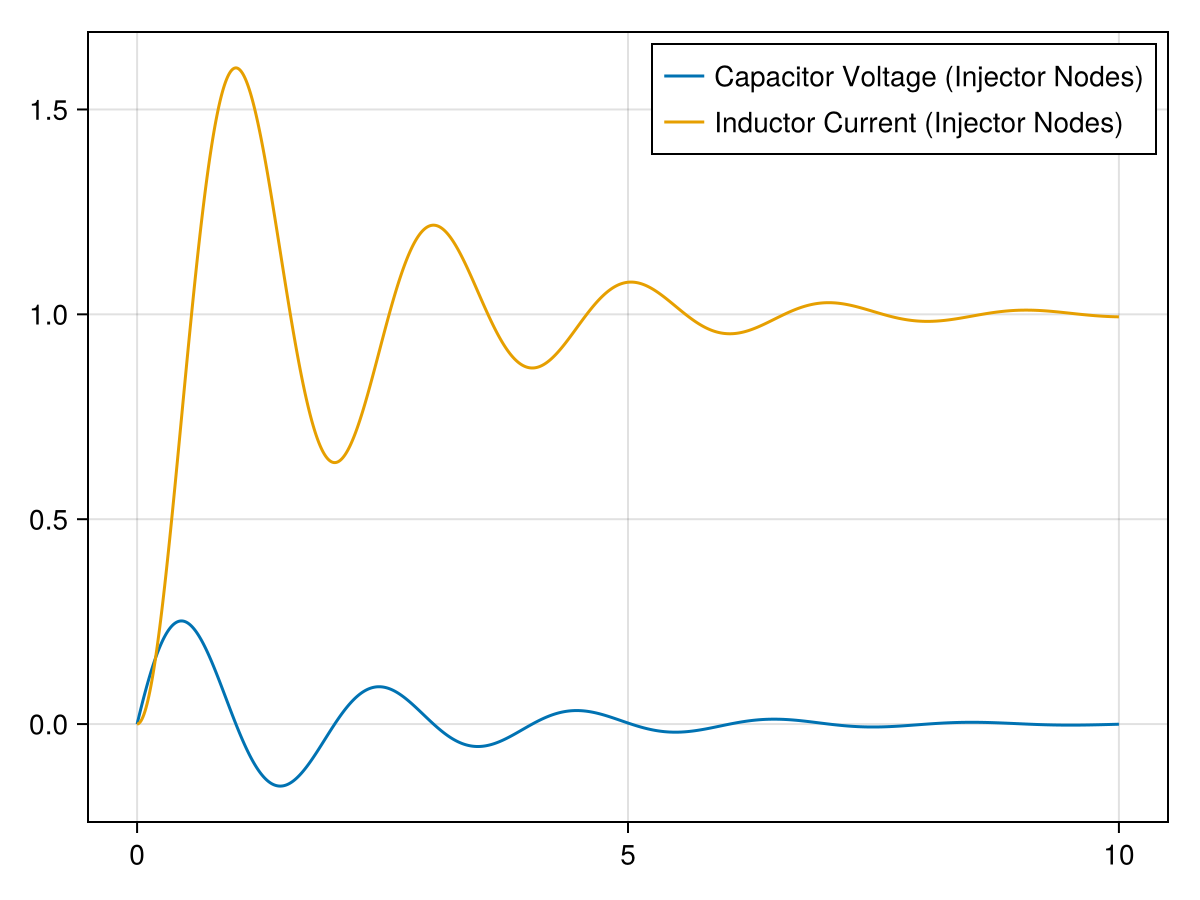

s0.v[:L_injector, :p₊i] = 0.0From initial state we can simulate and plot the results:
prob = ODEProblem(nw, s0, (0.0, 10.0))
sol = solve(prob, Tsit5())
let
fig = Figure()
ax = Axis(fig[1,1])
plot!(ax, sol; idxs=VIndex(:hub, :p₊v), label="Capacitor Voltage (Injector Nodes)", color=Cycled(1))
plot!(ax, sol; idxs=VIndex(:L_injector, :p₊i), label="Inductor Current (Injector Nodes)", color=Cycled(2))
axislegend(ax)
fig
end
Part B: Modeling with a Single VertexModel
For comparison, we now model the same system using a single monolithic vertex that contains all three components (capacitor, resistor, and inductor) internally.
@mtkmodel CRLModel begin
@components begin
cap = Capacitor()
resistor = ResistorInjector()
inductor = InductorInjector()
end
@variables begin
v(t), [description="Voltage at node"]
i(t)=0, [description="Current flowing into node"]
end
@equations begin
0 ~ resistor.p.i + inductor.p.i + cap.p.i - i
v ~ cap.p.v
v ~ resistor.p.v
v ~ inductor.p.v
end
end
@named crl_model = CRLModel()
crl_vertex = VertexModel(crl_model, [:i], [:v], name=:CRL_vertex)VertexModel :CRL_vertex PureStateMap()
├─ 1 input: [i=0]
├─ 2 states: [inductor₊p₊i, v]
├─ 1 output: [v]
└─ 3 params: [cap₊C=1, resistor₊R=100, inductor₊L=0.1]With that definition we can define the network again:
edges2 = [
EdgeModel(resistor, [:src₊v], [:dst₊v], [:src₊i], [:dst₊i]; src=:vs, dst=:CRL_vertex)
]
vertices2 = [vs_vertex, crl_vertex]
nw2 = Network(vertices2, edges2; warn_order=false)
s0_2 = NWState(nw2)
s0_2[VIndex(:CRL_vertex, :v)] = 0.0
s0_2[VIndex(:CRL_vertex, :inductor₊p₊i)] = 0.0
prob2 = ODEProblem(nw2, s0_2, (0.0, 10.0))
sol2 = solve(prob2, Tsit5())

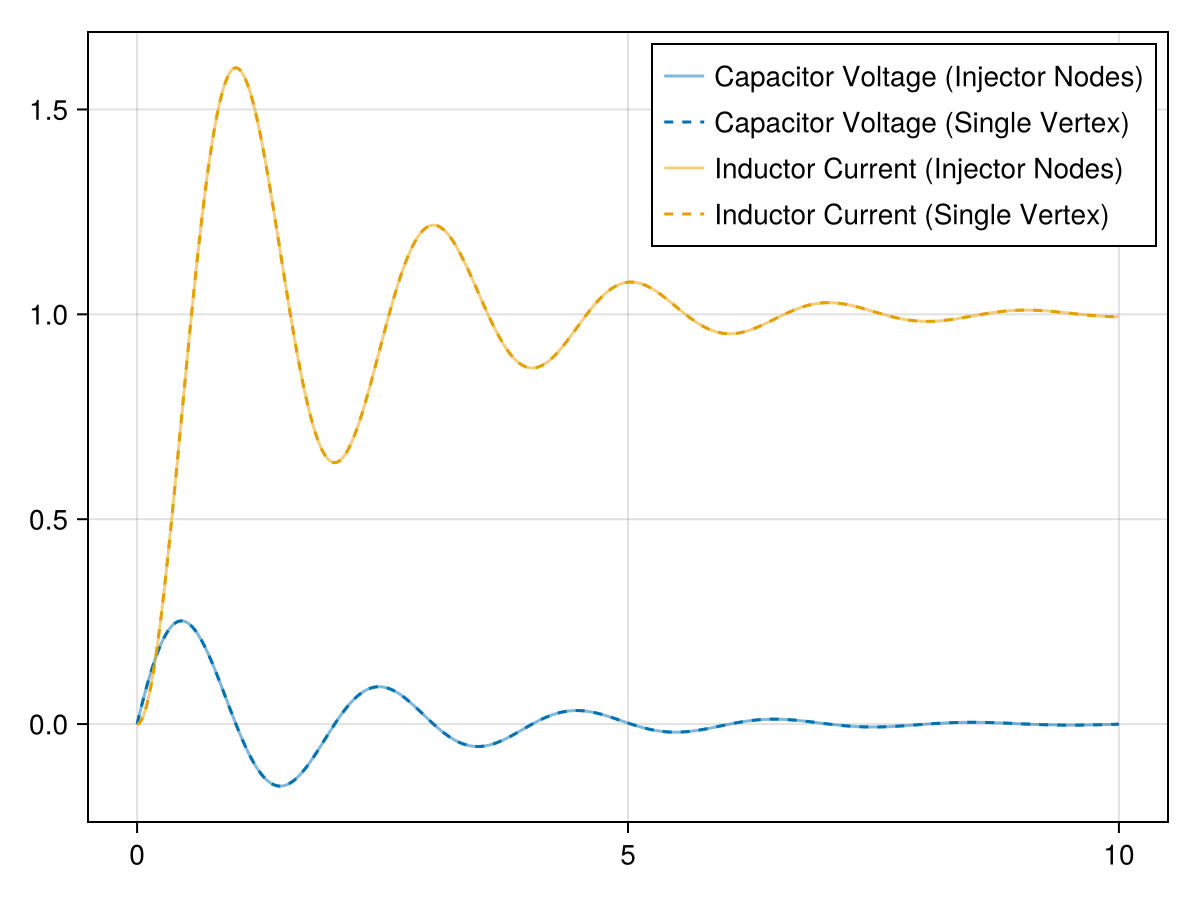

let
fig = Figure()
ax = Axis(fig[1,1])
plot!(ax, sol; idxs=VIndex(:hub, :p₊v), label="Capacitor Voltage (Injector Nodes)", color=Cycled(1), alpha=0.5)
plot!(ax, sol2; idxs=VIndex(:CRL_vertex, :v), label="Capacitor Voltage (Single Vertex)", color=Cycled(1), linestyle=:dash)
plot!(ax, sol; idxs=VIndex(:L_injector, :p₊i), label="Inductor Current (Injector Nodes)", color=Cycled(2), alpha=0.5)
plot!(ax, sol2; idxs=VIndex(:CRL_vertex, :inductor₊p₊i), label="Inductor Current (Single Vertex)", color=Cycled(2), linestyle=:dash)
axislegend(ax)
fig
end
As expected, we get identical results from both modeling approaches.
