External Inputs
External inputs for components are way to pass signals between components outside of the network structure. The most common usecase for that are control systems: make your vertex i depend on some state of vertex j.
If used, this will essentially wides the number of received inputs of a component function. I.e. the baseline mathematical models for vertex models
\[\begin{aligned} M^{\mathrm v}\,\frac{\mathrm{d}}{\mathrm{d}t}x^{\mathrm v} &= f^{\mathrm v}(u^{\mathrm v}, i^{\mathrm v}, i^{\mathrm{ext}}, p^{\mathrm v}, t)\\ y^{\mathrm v} &= g^{\mathrm v}(u^{\mathrm v}, i^{\mathrm v}, i^{\mathrm{ext}}, p^{\mathrm v}, t) \end{aligned}\]
fᵥ(dxᵥ, xᵥ, e_aggr, ext, pᵥ, t)
gᵥ(yᵥ, xᵥ, [e_aggr, ext,] pᵥ, t)and edge models
\[\begin{aligned} M^{\mathrm e}\,\frac{\mathrm{d}}{\mathrm{d}t}x^{\mathrm e} &= f^{\mathrm e}(u^{\mathrm e}, y^{\mathrm v}_{\mathrm{src}}, y^{\mathrm v}_{\mathrm{dst}}, i^{\mathrm{ext}}, p^{\mathrm e}, t)\\ y^{\mathrm e}_{\mathrm{dst}} &= g_\mathrm{dst}^{\mathrm e}(u^{\mathrm e}, y^{\mathrm v}_{\mathrm{src}}, y^{\mathrm v}_{\mathrm{dst}}, i^{\mathrm{ext}}, p^{\mathrm e}, t)\\ y^{\mathrm e}_{\mathrm{src}} &= g_\mathrm{src}^{\mathrm e}(u^{\mathrm e}, y^{\mathrm v}_{\mathrm{src}}, y^{\mathrm v}_{\mathrm{dst}}, i^{\mathrm{ext}}, p^{\mathrm e}, t) \end{aligned}\]
fₑ(dxₑ, xₑ, v_src, v_dst, ext, pₑ, t)
gₑ(y_src, y_dst, xᵥ, [v_src, v_dst, ext,] pₑ, t)change. You may still oomit the input section from g according to the different Feed Forward Behaviors. However you either have to use all inputs (including ext) or none.
Usage
Vertex and Edge models with external inputs can be created using the extin keyword of the EdgeModel and VertexModel constructors.
You need to pass a vector of SymbolicIndices (VIndex and EIndex), e.g.
VertexModel(... , extin=[VIndex(12,:x), VIndex(9, :x)], ...)means your vertex receives a 2 dimensional external input vector with the states x of vertices 12 and 9. See below for hands on example.
Limitations
There are some limitations in place. You can only reference states (i.e. things that appear in xᵥ or xₑ of some component model) or outputs of non-feed-forward components, i.e. states yᵥ or yₑ of some component model which does not have feed forward behavior in their g function.
Example
As an example system, we'll consider two capacitors with a resistor between them. Vertex 1 v1 has a controllable current source. Using a PI controller for the current source, it tries to keep the voltage at the second vertex stable under the disturbance of some time periodic current sind at v2.
v1 Resistor v2
PI controlled ─→─o─←────MMM────→─o─→─ time dependent
current source ┴ ┴ current sink
┬ ┬
⏚ ⏚The example will be implemented 2 times: in plain NetworkDynamcics and using MTK.
Plain NetworkDynamics
First we define the resistor:
using NetworkDynamics
using OrdinaryDiffEqTsit5
using CairoMakie
function resistor_g(idst, vsrc, vdst, (R,), t)
idst[1] = (vsrc[1] - vdst[1])/R
end
resistor = EdgeModel(g=AntiSymmetric(resistor_g),
outsym=:i, insym=:v, psym=:R=>0.1,
src=:source, dst=:load, name=:resistor)EdgeModel :resistor PureFeedForward() @ Edge source=>load
├─ 1/1 inputs: src=[src₊v] dst=[dst₊v]
├─ 0 states: []
├─ 1/1 outputs: src=[₋i] dst=[i]
└─ 1 param: [R=0.1]Then we define the "load" vertex with sinusoidial load profile:
function f_load(dv, v, iin, (C,), t)
dv[1] = 1/C*(iin[1] - (1 + 0.1*sin(t)))
end
load = VertexModel(f=f_load, g=1,
sym=:V=>0.5, insym=:i, psym=:C=>1,
vidx=2, name=:load)VertexModel :load PureStateMap() @ Vertex 2
├─ 1 input: [i]
├─ 1 state: [V=0.5]
├─ 1 output: [V=0.5]
└─ 1 param: [C=1]Lastly, we define the "source" vertex
function f_source(dv, v, iin, extin, (C,Vref,Ki,Kp), t)
Δ = Vref - extin[1] # tracking error
dv[2] = Δ # integrator state of PI
i_inj = Kp*Δ + Ki*v[2] # controller output
dv[1] = 1/C*(iin[1] + i_inj)
end
source = VertexModel(f=f_source, g=1,
sym=[:V=>0.5,:ξ=>0], insym=:i,
psym=[:C=>1, :Vref=>1, :Ki=>0.5, :Kp=>10],
extin=[VIndex(:load, :V)],
vidx=1, name=:source)VertexModel :source PureStateMap() @ Vertex 1
├─ 1 input: [i]
├─ 2 states: [V=0.5, ξ=0]
├─ 1 output: [V=0.5]
├─ 4 params: [C=1, Vref=1, Ki=0.5, Kp=10]
└─ 1 ext in: [VIndex(:load, :V)]Then we can create the network and simulate:
nw = Network([source, load], [resistor])
u0 = NWState(nw) # everything has default values
prob = ODEProblem(nw, uflat(u0), (0,100), pflat(u0))
sol = solve(prob, Tsit5())

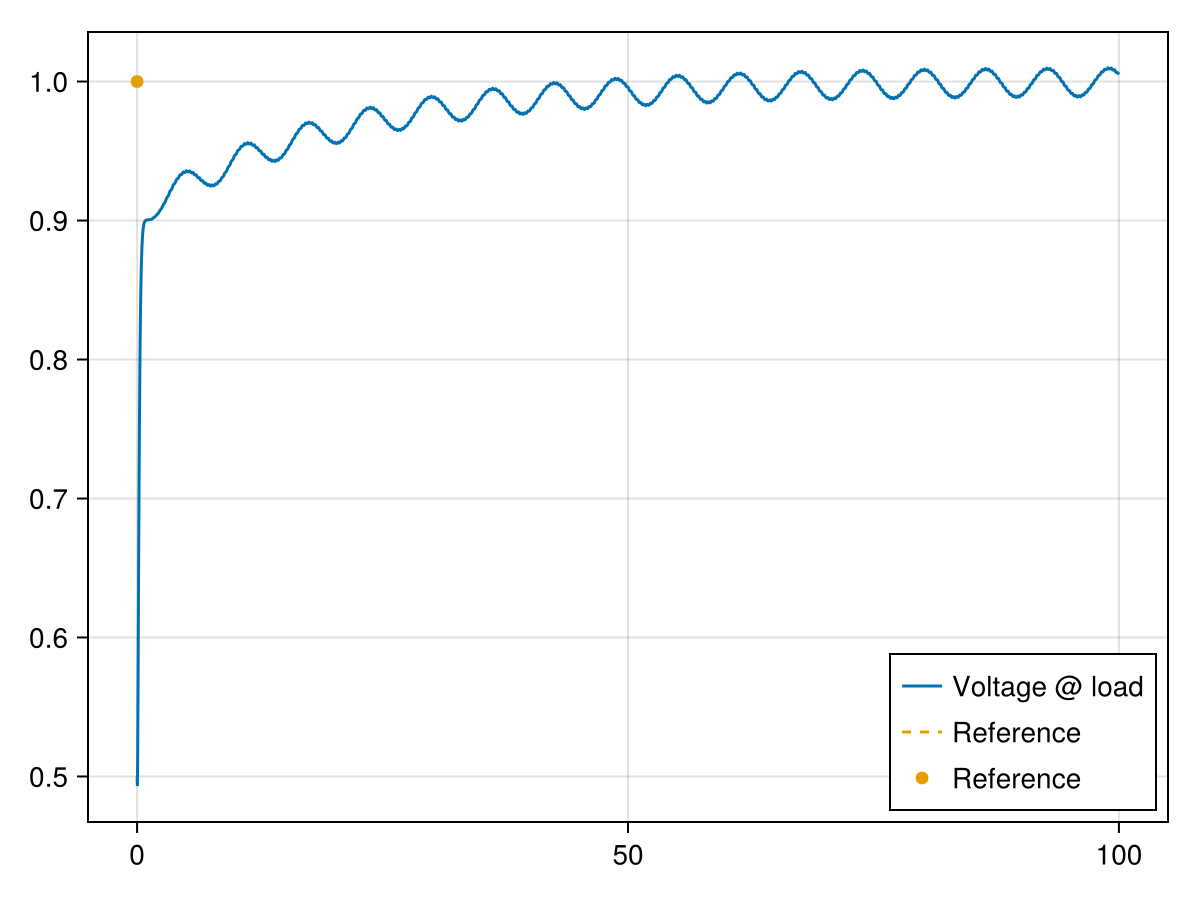

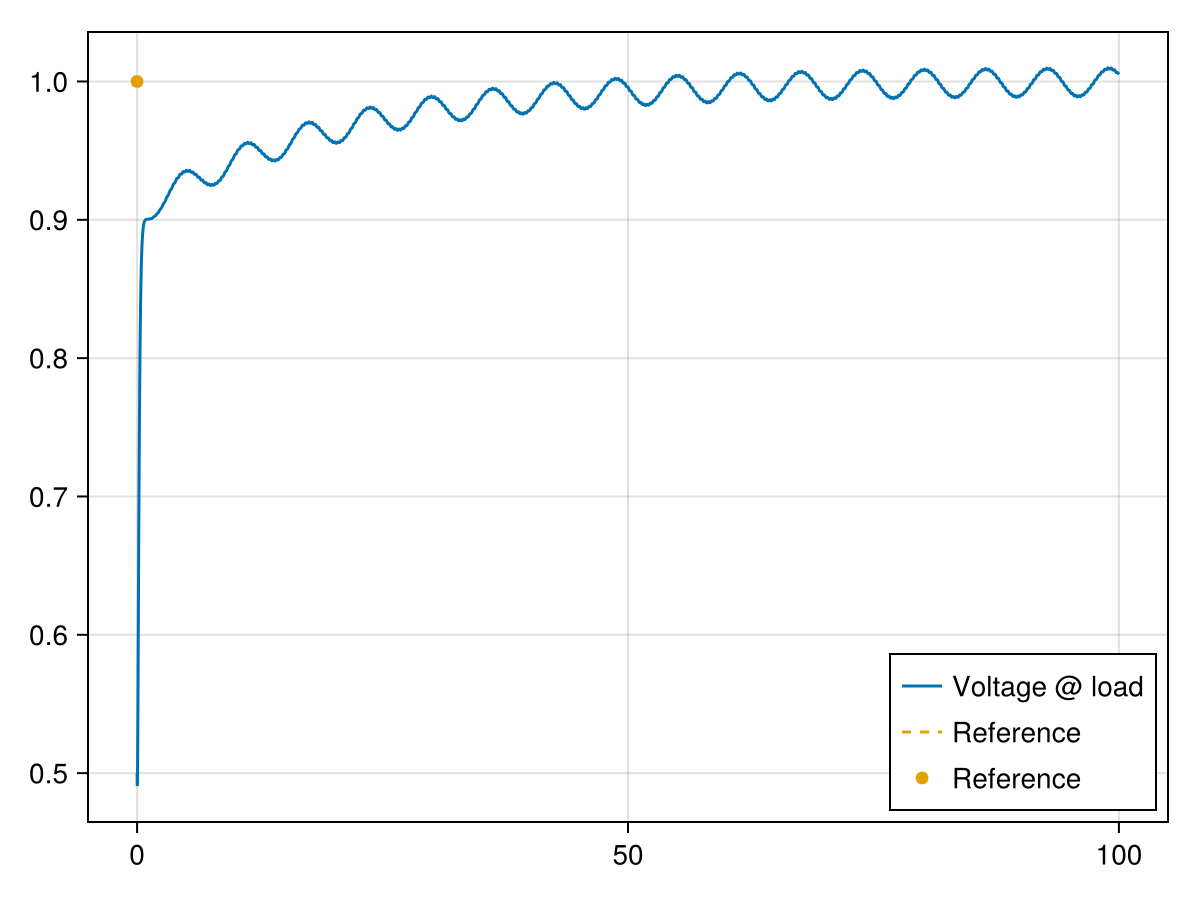

fig, ax, p = lines(sol, idxs=VIndex(:load, :V), label="Voltage @ load");
lines!(ax, sol, idxs=VPIndex(:source, :Vref), label="Reference", color=Cycled(2));
axislegend(ax; position=:rb);
MTK Models
First we define the resistor:
using NetworkDynamics
using OrdinaryDiffEqTsit5
using ModelingToolkit
using ModelingToolkit: t_nounits as t, D_nounits as Dt
using CairoMakie
@mtkmodel Resistor begin
@variables begin
i(t), [description="Current at dst end"]
V_src(t), [description="Voltage at src end"]
V_dst(t), [description="Voltage at dst end"]
end
@parameters begin
R=0.1, [description="Resistance"]
end
@equations begin
i ~ (V_src - V_dst)/R
end
end
@named resistor = Resistor()
resistor_edge = EdgeModel(resistor, [:V_src], [:V_dst], AntiSymmetric([:i]); src=:load, dst=:source)EdgeModel :resistor PureFeedForward() @ Edge load=>source
├─ 1/1 inputs: src=[V_src] dst=[V_dst]
├─ 0 states: []
├─ 1/1 outputs: src=[₋i] dst=[i]
└─ 1 param: [R=0.1]Then we define the "load" vertex with sinusoidial load profile:
@mtkmodel Load begin
@variables begin
V(t)=0.5, [description="Voltage"]
i_load(t), [description="Load current"]
i_grid(t), [description="Current from grid"]
end
@parameters begin
C=1, [description="Capacitance"]
end
@equations begin
i_load ~ 1 + 0.1*sin(t)
Dt(V) ~ 1/C*(i_grid - i_load)
end
end
@named load = Load()
load_vertex = VertexModel(load, [:i_grid], [:V]; vidx=2)VertexModel :load PureStateMap() @ Vertex 2
├─ 1 input: [i_grid]
├─ 1 state: [V=0.5]
├─ 1 output: [V=0.5]
└─ 1 param: [C=1]Lastly, we define the "source" vertex
@mtkmodel Source begin
@variables begin
V(t)=0.5, [description="Voltage"]
ξ(t)=0, [description="Integrator state"]
i_grid(t), [description="Current from grid"]
i_source(t), [description="Current from source"]
Δ(t), [description="Tracking Error"]
V_load(t), [description="Voltage at load"]
end
@parameters begin
C=1, [description="Capacitance"]
Vref=1, [description="Reference voltage"]
Ki=0.5, [description="Integral gain"]
Kp=10, [description="Proportional gain"]
end
@equations begin
Δ ~ Vref - V_load
Dt(ξ) ~ Δ
i_source ~ Kp*Δ + Ki*ξ
Dt(V) ~ 1/C*(i_grid + i_source)
end
end
@named source = Source()
source_vertex = VertexModel(source, [:i_grid], [:V];
extin=[:V_load => VIndex(:load, :V)], vidx=1)VertexModel :source PureStateMap() @ Vertex 1
├─ 1 input: [i_grid]
├─ 2 states: [ξ=0, V=0.5]
├─ 1 output: [V=0.5]
├─ 4 params: [C=1, Ki=0.5, Vref=1, Kp=10]
└─ 1 ext in: [VIndex(:load, :V)]Then we can create the network and simulate:
nw = Network([source_vertex, load_vertex], [resistor_edge])
u0 = NWState(nw) # everything has default values
prob = ODEProblem(nw, uflat(u0), (0,100), pflat(u0))
sol = solve(prob, Tsit5())

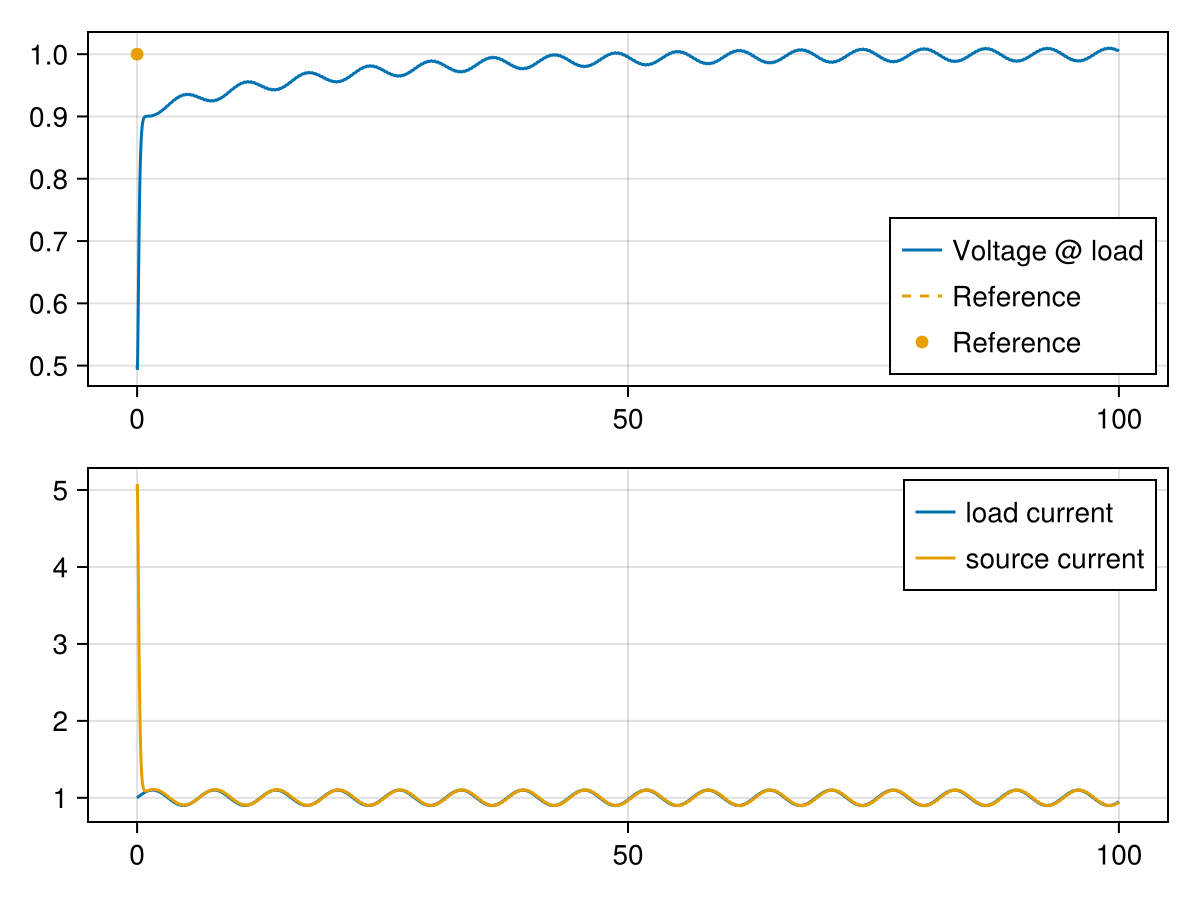

let
fig = Figure();
ax1 = Axis(fig[1,1]);
lines!(ax1, sol, idxs=VIndex(:load, :V), label="Voltage @ load");
lines!(ax1, sol, idxs=VPIndex(:source, :Vref), label="Reference", color=Cycled(2));
axislegend(ax1; position=:rb);
ax2 = Axis(fig[2,1]);
lines!(ax2, sol, idxs=VIndex(:load, :i_load), label="load current");
lines!(ax2, sol, idxs=VIndex(:source, :i_source), label="source current", color=Cycled(2));
axislegend(ax2);
fig
end
Using MTK for modeling, we can also inspect the currents i_load and i_source the MTK interface preserves the Observables.
