String method on the Muller-Brown landscape using a gradient function

This example demonstrates how to use CriticalTransitions.string_method when you do not have a DynamicalSystem, but instead have access to a potential landscape $V(x)$ and its gradient $\nabla V(x)$. Together with the implementation of the string method, this examples is inspired by Gideon Simpson package StringMethod.jl.

The string method implementation in CriticalTransitions expects a drift (vector field) b(x). For a gradient system, the natural choice is the gradient-descent flow

\[\dot{x} = -\nabla V(x),\]

so we pass b(x) = -gradV(x).

using CriticalTransitions

using CairoMakie
using ForwardDiff
using LinearAlgebra: norm
using NLsolve
using Optim
using Statistics: mean

Muller-Brown potential

We use the standard 4-Gaussian Muller-Brown potential

\[V(x,y) = \sum_{i=1}^4 A_i \exp\left(a_i(x-x_i)^2 + b_i(x-x_i)(y-y_i) + c_i(y-y_i)^2\right).\]

function Muller(x)
    aa = (-1.0, -1.0, -6.5, 0.7)
    bb = (0.0, 0.0, 11.0, 0.6)
    cc = (-10.0, -10.0, -6.5, 0.7)
    AA = (-200.0, -100.0, -170.0, 15.0)
    XX = (1.0, 0.0, -0.5, -1.0)
    YY = (0.0, 0.5, 1.5, 1.0)

    x1, x2 = x
    V = 0.0
    @inbounds for i in 1:4
        dx = x1 - XX[i]
        dy = x2 - YY[i]
        V += AA[i] * exp(aa[i] * dx^2 + bb[i] * dx * dy + cc[i] * dy^2)
    end
    return V
end

V = x -> Muller(x)

#1 (generic function with 1 method)

The gradient can be computed with ForwardDiff.

gradV = x -> ForwardDiff.gradient(V, x)

#3 (generic function with 1 method)

Locate minima and saddles (for plotting)

This part is not strictly necessary for computing the string, but it helps for visualization and for choosing endpoints.

min1 = optimize(V, [-0.75, 1.5])
x1 = min1.minimizer
min2 = optimize(V, [0.6, 0.0])
x2 = min2.minimizer
min3 = optimize(V, [0.0, 0.5])
x3 = min3.minimizer

saddle1 = nlsolve(gradV, [-1.0, 0.5])
s1 = saddle1.zero
saddle2 = nlsolve(gradV, [0.25, 0.3])
s2 = saddle2.zero

x1, x2, x3, s1, s2

([-0.5582223315786567, 1.441727697793157], [0.6235028759609716, 0.028037347734474527], [-0.05001052926654174, 0.46668995606833874], [-0.8220015587327318, 0.6243128028148712], [0.2124865820008195, 0.29298832510745915])

Run the string method using a gradient function

The string method expects a drift field, so we wrap the gradient into gradient-descent drift.

b(x) = -gradV(x)

b (generic function with 1 method)

Choose endpoints between two minima (left well to right well).

xa = x1
xb = x2

2-element Vector{Float64}:
 0.6235028759609716
 0.028037347734474527

Construct an initial string as a 2×Nt matrix, with a small transverse perturbation to make the convergence visually obvious.

function linear_string(a, b, Nt)
    xs = range(a[1], b[1]; length = Nt)
    ys = range(a[2], b[2]; length = Nt)
    return vcat(xs', ys')
end

Nt = 50
x_initial = linear_string(xa, xb, Nt)
x_initial[2, :] .+= 0.15 .* sin.(range(0, π; length = Nt))

50-element view(::Matrix{Float64}, 2, :) with eltype Float64:
 1.441727697793157
 1.4224874073196787
 1.4032076251046623
 1.3838490216866066
 1.3643725914972415
 1.3447398131437733
 1.324912807701551
 1.3048544943666933
 1.2845287428290648
 1.263900521739471
 1.2429360426609857
 1.2216028989128864
 1.1998701987366558
 1.1777086922368447
 1.1550908915751665
 1.1319911839239198
 1.1083859367145932
 1.0842535947491558
 1.0595747687749926
 1.0343323151594992
 1.008511406336949
 0.9820995917381381
 0.9550868489524467
 0.9274656249120735
 0.8992308669292117
 0.8703800434586262
 0.8409131545003175
 0.81083273159952
 0.7801438274440405
 0.7488539951016808
 0.7169732569830605
 0.6845140636573828
 0.6514912426903756
 0.6179219377146421
 0.5838255379827982
 0.549223598692874
 0.5141397524133815
 0.4785996119720218
 0.4426306652070817
 0.4062621620140105
 0.369524994151325
 0.3324515682997481
 0.29507567289620573
 0.25743233928989273
 0.21955769779094444
 0.18148882920324205
 0.14326361245143648
 0.10492056892832116
 0.06649870420216687
 0.028037347734474544

The parameter stepsize is the (fixed) time step used internally for the evolution step. The Muller-Brown potential has steep regions, so small stepsize is recommended.

stepsize = 1.0e-4
maxiters = 2500

string = CriticalTransitions.string_method(
    b, x_initial; stepsize, maxiters, show_progress = false
)

Minimum action Path of length 50 in 2 dimensions

A simple convergence diagnostic: average step along the string.

string_m = Matrix(string.path)
dmean = mean(norm(string_m[i + 1, :] .- string_m[i, :]) for i in 1:(size(string_m, 1) - 1))
dmean

0.05472215599356862

Visualize on the potential landscape

xx = LinRange(-1.5, 1.5, 250)
yy = LinRange(-0.5, 2.0, 250)
V_vals = [V([x, y]) for y in yy, x in xx]
V_clip = min.(V_vals, 500)

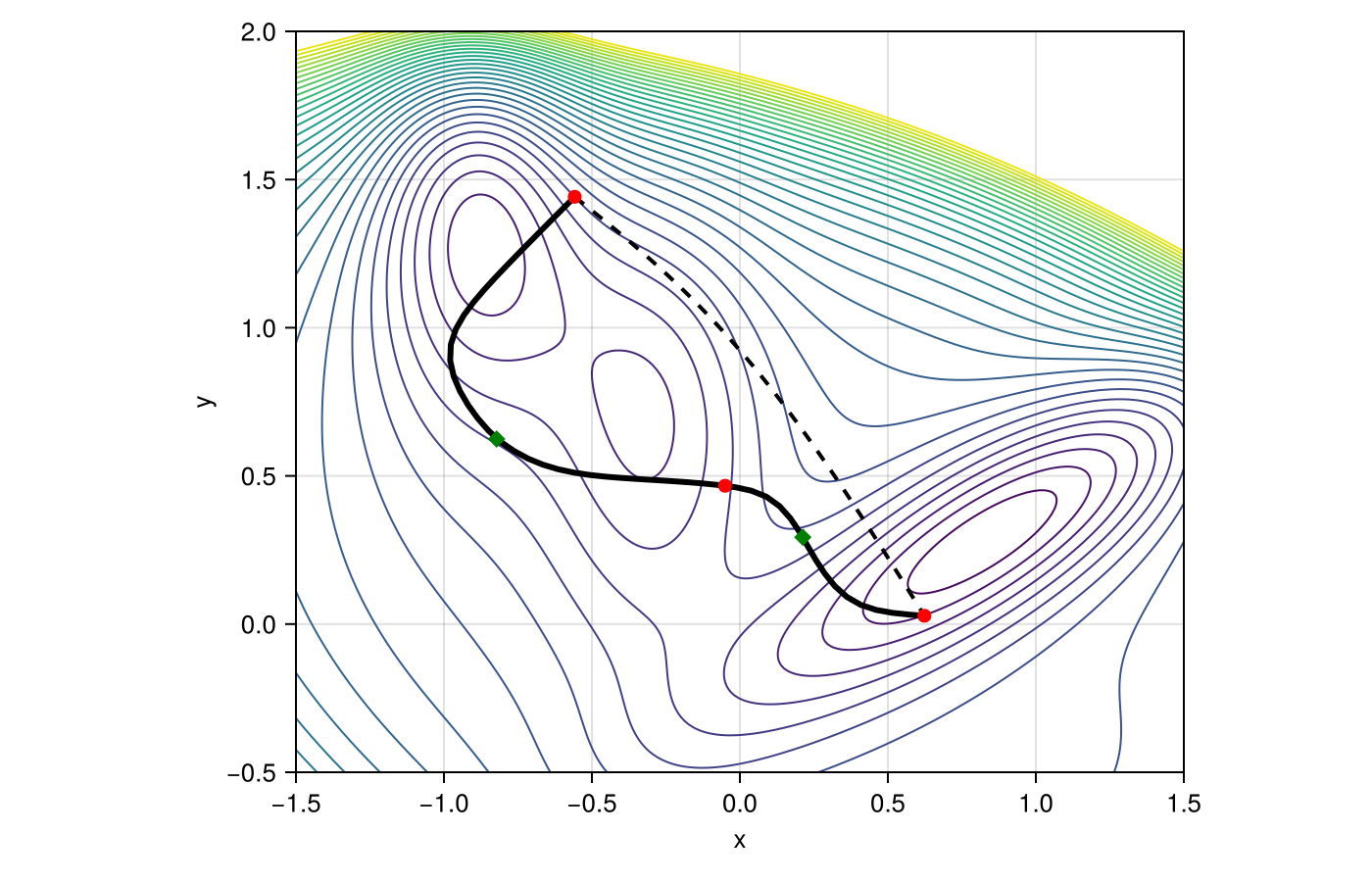

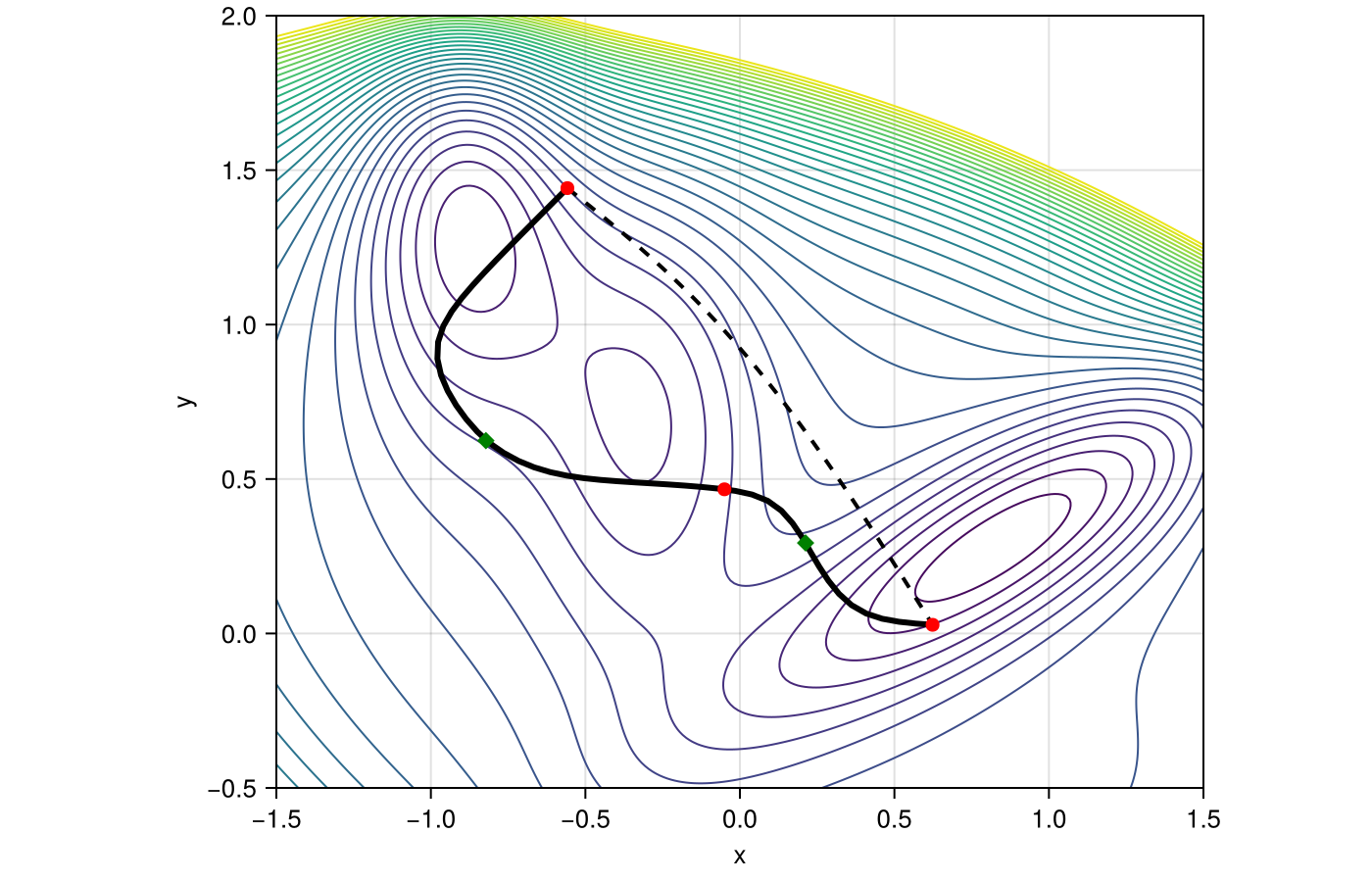

fig = Figure(; size = (700, 450), fontsize = 13)
ax = Axis(fig[1, 1]; xlabel = "x", ylabel = "y", aspect = 1.2)
contour!(ax, xx, yy, V_clip; levels = range(-150, 500, 35), colormap = :viridis)

lines!(ax, x_initial[1, :], x_initial[2, :]; color = :black, linewidth = 2, linestyle = :dash) # Initial string (dashed) and converged string (solid)
lines!(ax, string_m[:, 1], string_m[:, 2]; color = :black, linewidth = 3)

scatter!(ax, [x1[1], x2[1], x3[1]], [x1[2], x2[2], x3[2]]; color = :red, markersize = 10) # Minima and saddles
scatter!(ax, [s1[1], s2[1]], [s1[2], s2[2]]; color = :green, marker = :diamond, markersize = 10)

limits!(ax, extrema(xx)..., extrema(yy)...)
fig
