# Predator-prey dynamics

The predator-prey model emulates the population dynamics of predator and prey animals who live in a common ecosystem and compete over limited resources. This model is an agent-based analog to the classic Lotka-Volterra differential equation model.

This example illustrates how to develop models with heterogeneous agents (sometimes referred to as a *mixed agent based model*), incorporation of a spatial property in the dynamics (represented by a standard array, not an agent, as is done in most other ABM frameworks), and usage of `GridSpace`

, which allows multiple agents per grid coordinate.

## Model specification

The environment is a two dimensional grid containing sheep, wolves and grass. In the model, wolves eat sheep and sheep eat grass. Their populations will oscillate over time if the correct balance of resources is achieved. Without this balance however, a population may become extinct. For example, if wolf population becomes too large, they will deplete the sheep and subsequently die of starvation.

We will begin by loading the required packages and defining two subtypes of `AbstractAgent`

: `Sheep`

, `Wolf`

. Grass will be a spatial property in the model. All three agent types have `id`

and `pos`

properties, which is a requirement for all subtypes of `AbstractAgent`

when they exist upon a `GridSpace`

. Sheep and wolves have identical properties, but different behaviors as explained below. The property `energy`

represents an animals current energy level. If the level drops below zero, the agent will die. Sheep and wolves reproduce asexually in this model, with a probability given by `reproduction_prob`

. The property `Δenergy`

controls how much energy is acquired after consuming a food source.

Grass is a replenishing resource that occupies every position in the grid space. Grass can be consumed only if it is `fully_grown`

. Once the grass has been consumed, it replenishes after a delay specified by the property `regrowth_time`

. The property `countdown`

tracks the delay between being consumed and the regrowth time.

It is also available from the `Models`

module as `Models.predator_prey`

.

## Making the model

First we define the agent types (here you can see that it isn't really that much of an advantage to have two different agent types. Like in the Rabbit, Fox, Wolf example, we could have only one type and one additional filed to separate them. Nevertheless, for the sake of example, we will use two different types.)

```
using Agents, Random
@agent Sheep GridAgent{2} begin
energy::Float64
reproduction_prob::Float64
Δenergy::Float64
end
@agent Wolf GridAgent{2} begin
energy::Float64
reproduction_prob::Float64
Δenergy::Float64
end
```

The function `initialize_model`

returns a new model containing sheep, wolves, and grass using a set of pre-defined values (which can be overwritten). The environment is a two dimensional grid space, which enables animals to walk in all directions.

```
function initialize_model(;
n_sheep = 100,
n_wolves = 50,
dims = (20, 20),
regrowth_time = 30,
Δenergy_sheep = 4,
Δenergy_wolf = 20,
sheep_reproduce = 0.04,
wolf_reproduce = 0.05,
seed = 23182,
)
rng = MersenneTwister(seed)
space = GridSpace(dims, periodic = true)
# Model properties contain the grass as two arrays: whether it is fully grown
# and the time to regrow. Also have static parameter `regrowth_time`.
# Notice how the properties are a `NamedTuple` to ensure type stability.
properties = (
fully_grown = falses(dims),
countdown = zeros(Int, dims),
regrowth_time = regrowth_time,
)
model = ABM(Union{Sheep, Wolf}, space;
properties, rng, scheduler = Schedulers.randomly, warn = false
)
# Add agents
for _ in 1:n_sheep
energy = rand(model.rng, 1:(Δenergy_sheep*2)) - 1
add_agent!(Sheep, model, energy, sheep_reproduce, Δenergy_sheep)
end
for _ in 1:n_wolves
energy = rand(model.rng, 1:(Δenergy_wolf*2)) - 1
add_agent!(Wolf, model, energy, wolf_reproduce, Δenergy_wolf)
end
# Add grass with random initial growth
for p in positions(model)
fully_grown = rand(model.rng, Bool)
countdown = fully_grown ? regrowth_time : rand(model.rng, 1:regrowth_time) - 1
model.countdown[p...] = countdown
model.fully_grown[p...] = fully_grown
end
return model
end
sheepwolfgrass = initialize_model()
```

```
StandardABM with 150 agents of type Union{Main.var"ex-predator_prey".Sheep, Main.var"ex-predator_prey".Wolf}
space: GridSpace with size (20, 20), metric=chebyshev, periodic=true
scheduler: randomly
properties: fully_grown, countdown, regrowth_time
```

## Defining the stepping functions

Sheep and wolves behave similarly: both lose 1 energy unit by moving to an adjacent position and both consume a food source if available. If their energy level is below zero, they die. Otherwise, they live and reproduce with some probability. They move to a random adjacent position with the `randomwalk!`

function.

Notice how the function `sheepwolf_step!`

, which is our `agent_step!`

, is dispatched to the appropriate agent type via Julia's Multiple Dispatch system.

```
function sheepwolf_step!(sheep::Sheep, model)
randomwalk!(sheep, model)
sheep.energy -= 1
if sheep.energy < 0
remove_agent!(sheep, model)
return
end
eat!(sheep, model)
if rand(model.rng) ≤ sheep.reproduction_prob
reproduce!(sheep, model)
end
end
function sheepwolf_step!(wolf::Wolf, model)
randomwalk!(wolf, model; ifempty=false)
wolf.energy -= 1
if wolf.energy < 0
remove_agent!(wolf, model)
return
end
# If there is any sheep on this grid cell, it's dinner time!
dinner = first_sheep_in_position(wolf.pos, model)
!isnothing(dinner) && eat!(wolf, dinner, model)
if rand(model.rng) ≤ wolf.reproduction_prob
reproduce!(wolf, model)
end
end
function first_sheep_in_position(pos, model)
ids = ids_in_position(pos, model)
j = findfirst(id -> model[id] isa Sheep, ids)
isnothing(j) ? nothing : model[ids[j]]::Sheep
end
```

`first_sheep_in_position (generic function with 1 method)`

Sheep and wolves have separate `eat!`

functions. If a sheep eats grass, it will acquire additional energy and the grass will not be available for consumption until regrowth time has elapsed. If a wolf eats a sheep, the sheep dies and the wolf acquires more energy.

```
function eat!(sheep::Sheep, model)
if model.fully_grown[sheep.pos...]
sheep.energy += sheep.Δenergy
model.fully_grown[sheep.pos...] = false
end
return
end
function eat!(wolf::Wolf, sheep::Sheep, model)
remove_agent!(sheep, model)
wolf.energy += wolf.Δenergy
return
end
```

`eat! (generic function with 2 methods)`

Sheep and wolves share a common reproduction method. Reproduction has a cost of 1/2 the current energy level of the parent. The offspring is an exact copy of the parent, with exception of `id`

.

```
function reproduce!(agent::A, model) where {A}
agent.energy /= 2
id = nextid(model)
offspring = A(id, agent.pos, agent.energy, agent.reproduction_prob, agent.Δenergy)
add_agent_pos!(offspring, model)
return
end
```

`reproduce! (generic function with 1 method)`

The behavior of grass function differently. If it is fully grown, it is consumable. Otherwise, it cannot be consumed until it regrows after a delay specified by `regrowth_time`

. The dynamics of the grass is our `model_step!`

function.

```
function grass_step!(model)
@inbounds for p in positions(model) # we don't have to enable bound checking
if !(model.fully_grown[p...])
if model.countdown[p...] ≤ 0
model.fully_grown[p...] = true
model.countdown[p...] = model.regrowth_time
else
model.countdown[p...] -= 1
end
end
end
end
```

`grass_step! (generic function with 1 method)`

## Running the model

We will run the model for 500 steps and record the number of sheep, wolves and consumable grass patches after each step. First: initialize the model.

```
using InteractiveDynamics
using CairoMakie
```

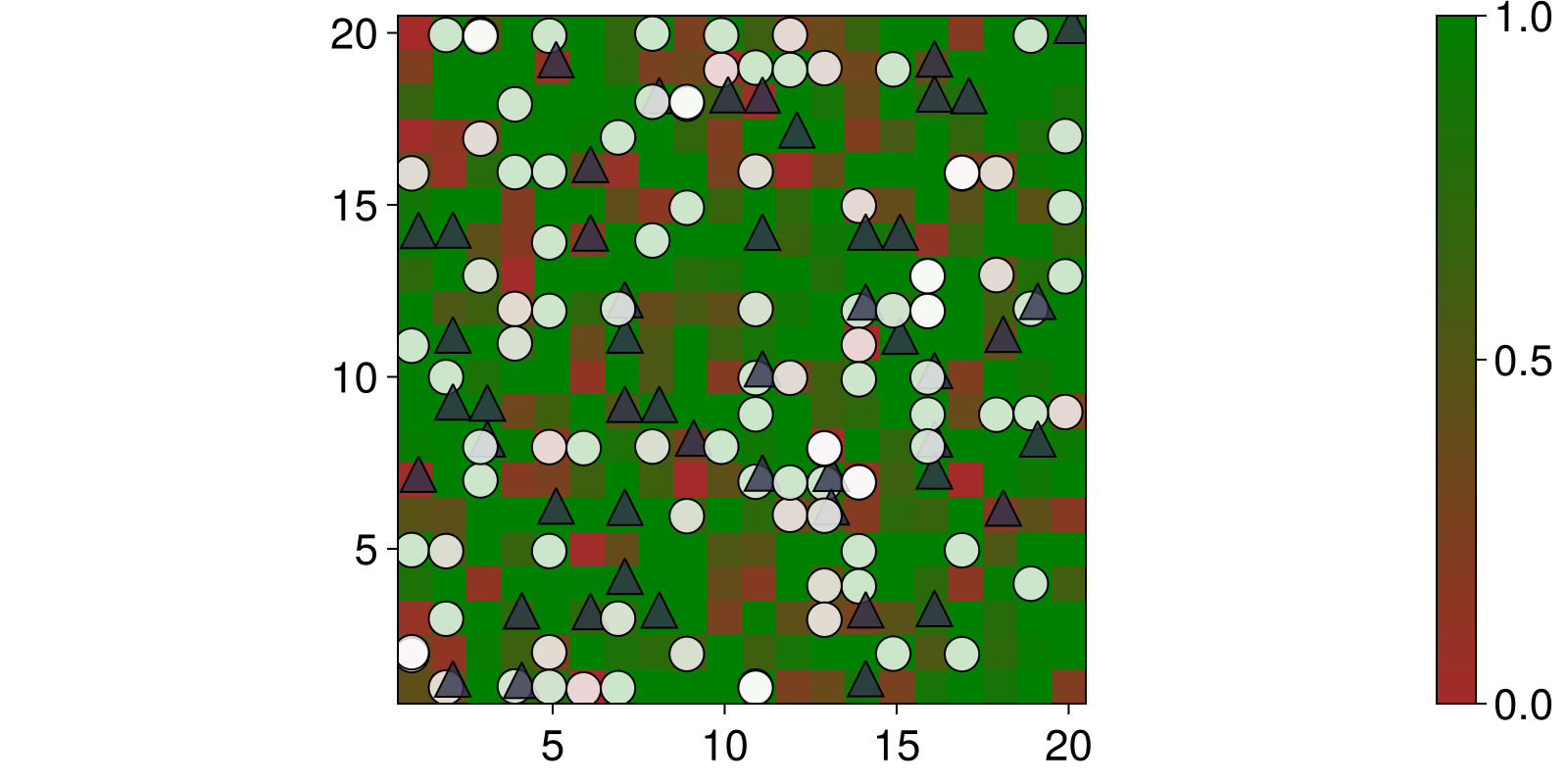

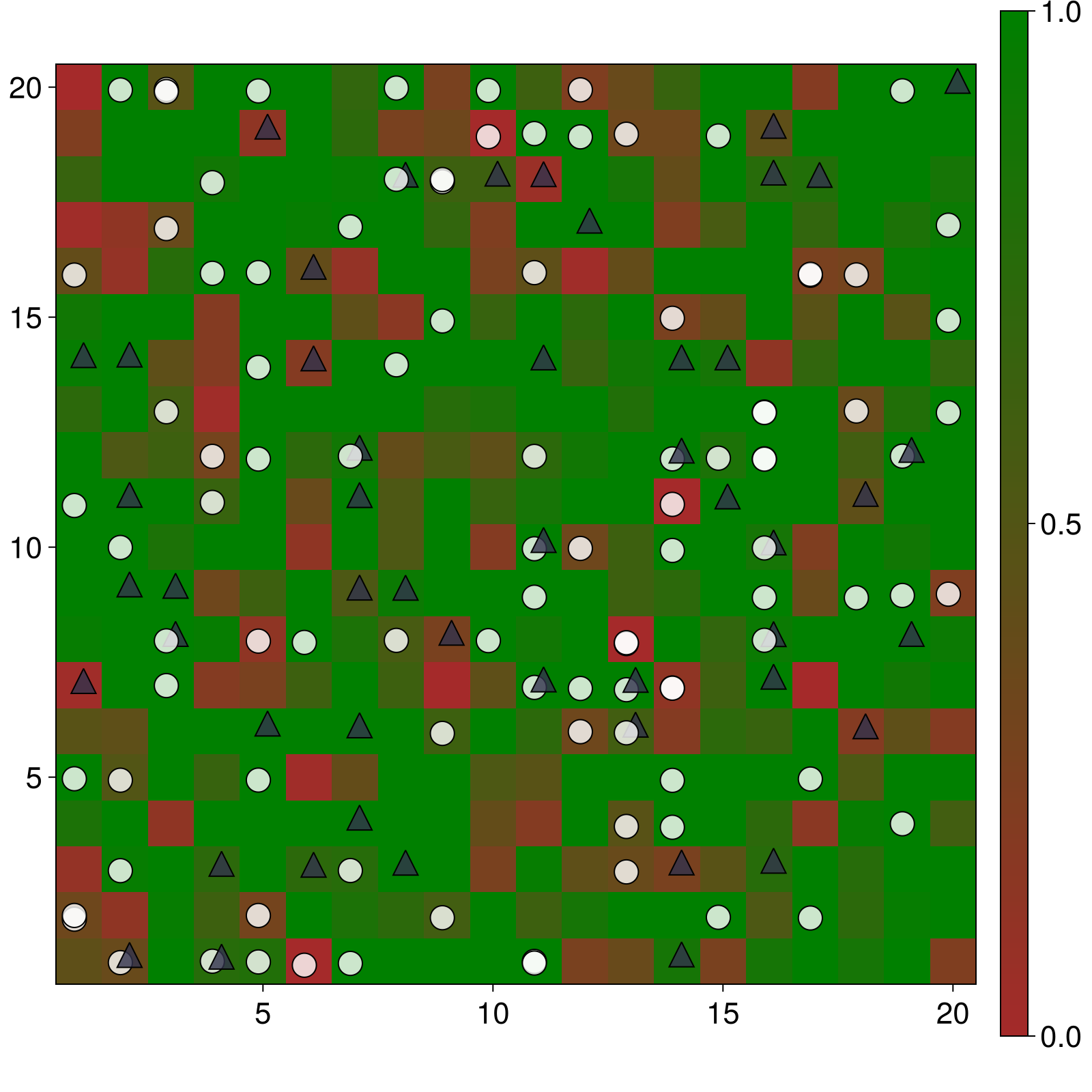

To view our starting population, we can build an overview plot using `abmplot`

. We define the plotting details for the wolves and sheep:

```
offset(a) = a isa Sheep ? (-0.1, -0.1*rand()) : (+0.1, +0.1*rand())
ashape(a) = a isa Sheep ? :circle : :utriangle
acolor(a) = a isa Sheep ? RGBAf(1.0, 1.0, 1.0, 0.8) : RGBAf(0.2, 0.2, 0.3, 0.8)
```

`acolor (generic function with 1 method)`

and instruct `abmplot`

how to plot grass as a heatmap:

`grasscolor(model) = model.countdown ./ model.regrowth_time`

`grasscolor (generic function with 1 method)`

and finally define a colormap for the grass:

`heatkwargs = (colormap = [:brown, :green], colorrange = (0, 1))`

`(colormap = [:brown, :green], colorrange = (0, 1))`

and put everything together and give it to `abmplot`

```
plotkwargs = (;
ac = acolor,
as = 25,
am = ashape,
offset,
scatterkwargs = (strokewidth = 1.0, strokecolor = :black),
heatarray = grasscolor,
heatkwargs = heatkwargs,
)
sheepwolfgrass = initialize_model()
fig, ax, abmobs = abmplot(sheepwolfgrass;
agent_step! = sheepwolf_step!,
model_step! = grass_step!,
plotkwargs...)
fig
```

Now, lets run the simulation and collect some data. Define datacollection:

```
sheep(a) = a isa Sheep
wolf(a) = a isa Wolf
count_grass(model) = count(model.fully_grown)
```

`count_grass (generic function with 1 method)`

Run simulation:

```
sheepwolfgrass = initialize_model()
steps = 1000
adata = [(sheep, count), (wolf, count)]
mdata = [count_grass]
adf, mdf = run!(sheepwolfgrass, sheepwolf_step!, grass_step!, steps; adata, mdata)
```

```
(1001×3 DataFrame
Row │ step count_sheep count_wolf
│ Int64 Int64 Int64
──────┼────────────────────────────────
1 │ 0 100 50
2 │ 1 81 53
3 │ 2 64 53
4 │ 3 57 54
5 │ 4 54 55
6 │ 5 43 57
7 │ 6 36 59
8 │ 7 32 62
⋮ │ ⋮ ⋮ ⋮
995 │ 994 39 0
996 │ 995 41 0
997 │ 996 41 0
998 │ 997 40 0
999 │ 998 41 0
1000 │ 999 42 0
1001 │ 1000 38 0
986 rows omitted, 1001×2 DataFrame
Row │ step count_grass
│ Int64 Int64
──────┼────────────────────
1 │ 0 203
2 │ 1 160
3 │ 2 140
4 │ 3 132
5 │ 4 130
6 │ 5 123
7 │ 6 120
8 │ 7 123
⋮ │ ⋮ ⋮
995 │ 994 121
996 │ 995 120
997 │ 996 124
998 │ 997 124
999 │ 998 119
1000 │ 999 124
1001 │ 1000 123
986 rows omitted)
```

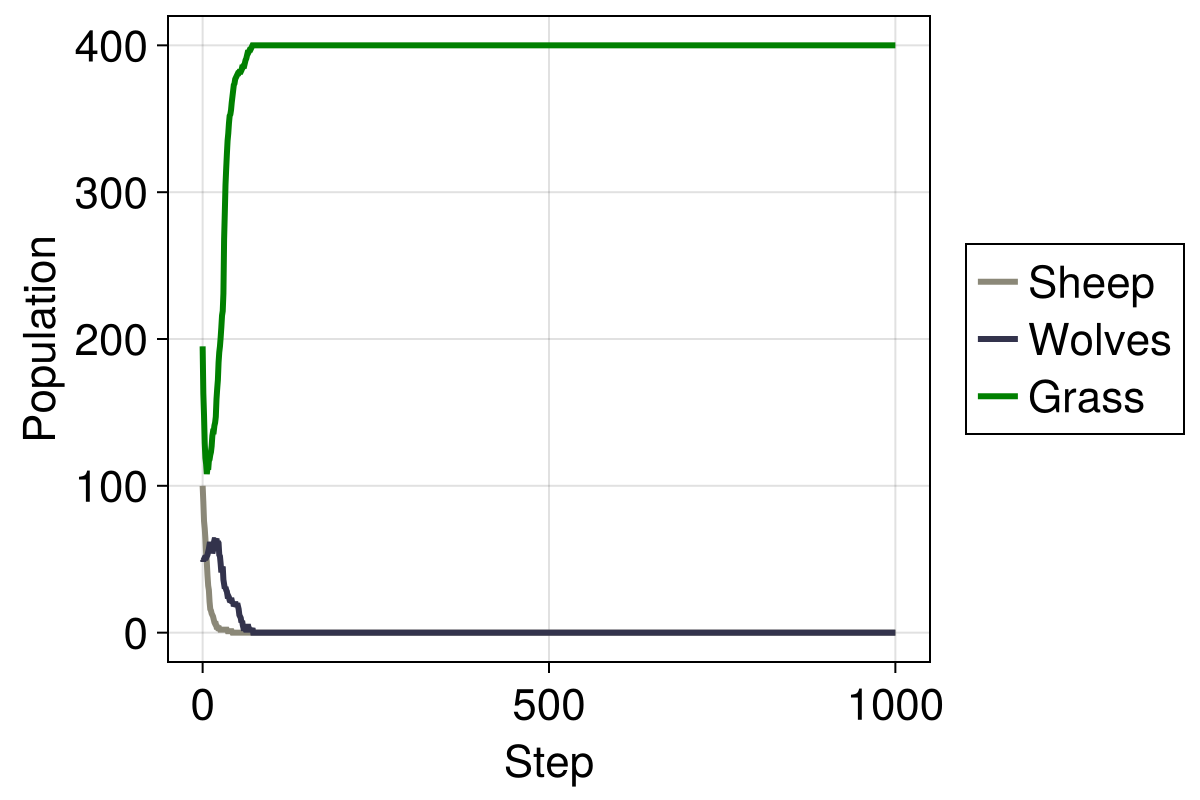

The following plot shows the population dynamics over time. Initially, wolves become extinct because they consume the sheep too quickly. The few remaining sheep reproduce and gradually reach an equilibrium that can be supported by the amount of available grass.

```
function plot_population_timeseries(adf, mdf)
figure = Figure(resolution = (600, 400))
ax = figure[1, 1] = Axis(figure; xlabel = "Step", ylabel = "Population")
sheepl = lines!(ax, adf.step, adf.count_sheep, color = :cornsilk4)
wolfl = lines!(ax, adf.step, adf.count_wolf, color = RGBAf(0.2, 0.2, 0.3))
grassl = lines!(ax, mdf.step, mdf.count_grass, color = :green)
figure[1, 2] = Legend(figure, [sheepl, wolfl, grassl], ["Sheep", "Wolves", "Grass"])
figure
end
plot_population_timeseries(adf, mdf)
```

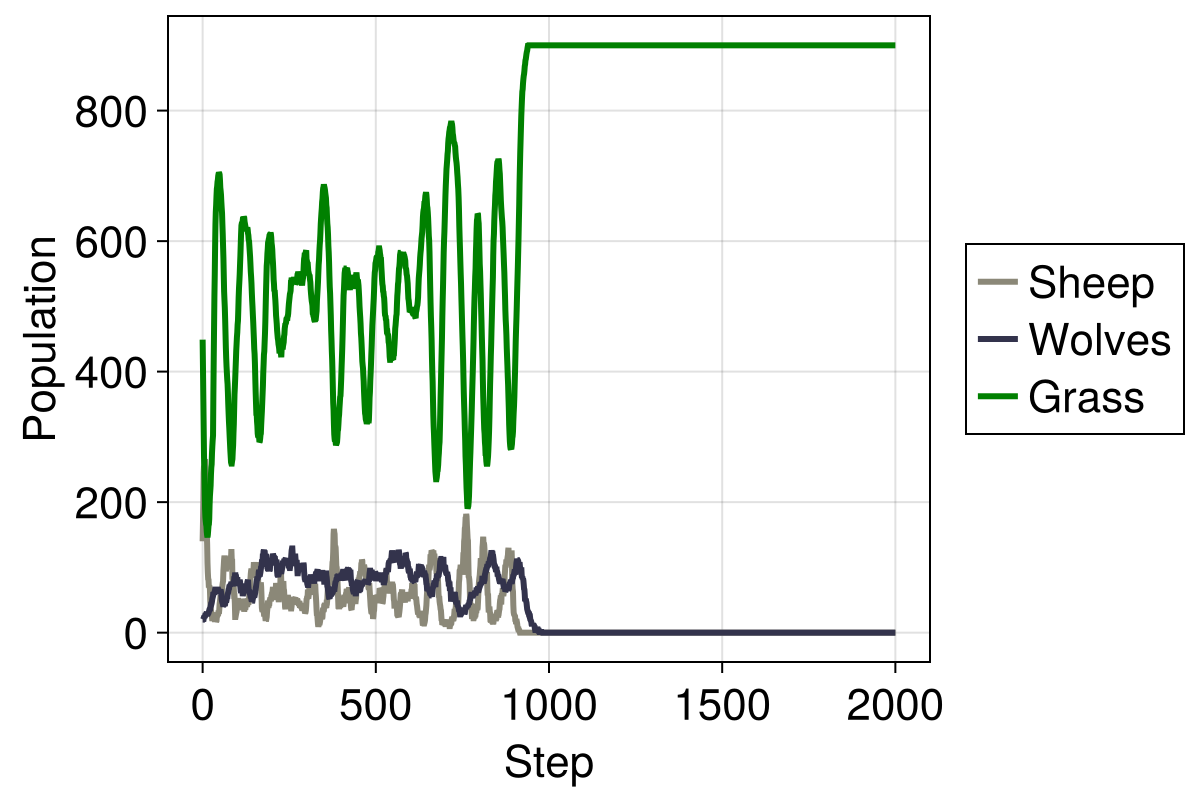

Altering the input conditions, we now see a landscape where sheep, wolves and grass find an equilibrium

```
stable_params = (;
n_sheep = 140,
n_wolves = 20,
dims = (30, 30),
Δenergy_sheep = 5,
sheep_reproduce = 0.31,
wolf_reproduce = 0.06,
Δenergy_wolf = 30,
seed = 71758,
)
sheepwolfgrass = initialize_model(;stable_params...)
adf, mdf = run!(sheepwolfgrass, sheepwolf_step!, grass_step!, 2000; adata, mdata)
plot_population_timeseries(adf, mdf)
```

Finding a parameter combination that leads to long-term coexistence was surprisingly difficult. It is for such cases that the Optimizing agent based models example is useful!

## Video

Given that we have defined plotting functions, making a video is as simple as

```
sheepwolfgrass = initialize_model(;stable_params...)
abmvideo(
"sheepwolf.mp4",
sheepwolfgrass,
sheepwolf_step!,
grass_step!;
frames = 100,
framerate = 8,
title = "Sheep Wolf Grass",
plotkwargs...,
)
```
